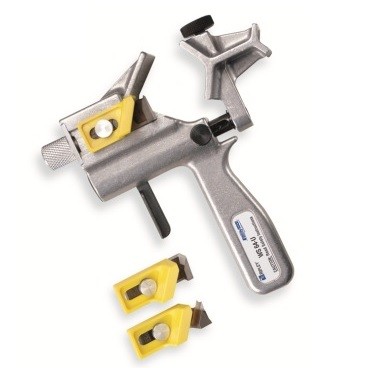

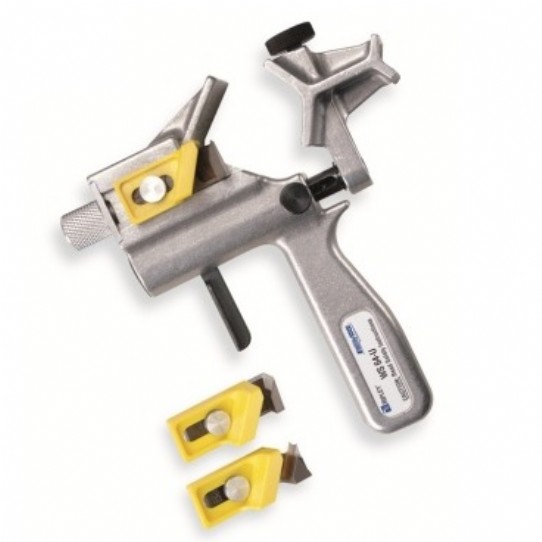

WS 64-U-E Universal Adjustable Cable Stripper c/w End Strip Blade
Part # : 37296
Adjustable Cable Stripper (WS 64)
-
“Universal” tool for end stripping or mid span stripping of outer jackets or insulating material
-
End stripping and mid span stripping with different blades (interchangeable)
-
“Dual position” jaw for cable sizes from 1/2 in. up to 2-1/2 in. (12.7 to 63.5 mm) cable O.D. is versatile for electric utility applications
-
Removes outer jacket on primary power cable (all major insulation shields)
-
When using mid span blade stripping version, caution must be used when end stripping concentric neutral cables
-
Versatile design also includes ability to strip secondary and primary cable insulations
-
Quickly and easily adjusts to cable size with spring loaded “trigger-action” jaw
-
Micro adjustable blade allows accurate setup for a variety of insulation thicknesses
-
Self feeding tool design allows easy and efficient operation with minimal effort
-
Compact design for tighter work space requirements
-
Rugged, all metal body design
End Stripping only
Outer jackets up to 2.5 in OD (63.5mm)
Insulation to 1.5 in OD up to 35KV - 345
mils (8.8mm) maximum thickness
Length: 8 in. (200 mm)
Weight: 1.9 lb (860 g)
