Universal Sheave

Part # : 70202

• Applications include telephone and utility vehicles, mining, logging and general industry

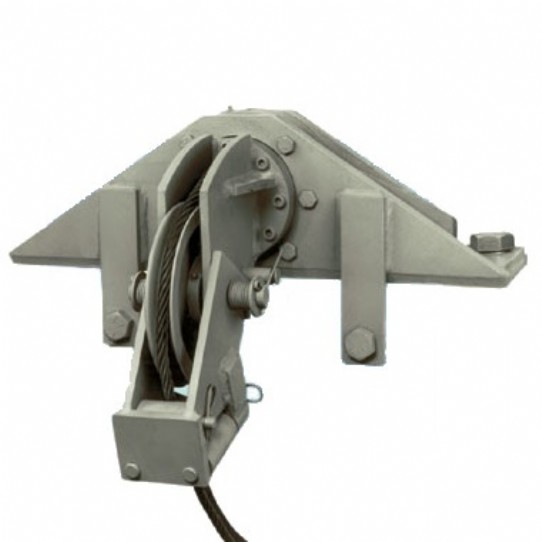

• The UV-25 sheave assembly is a ruggedly constructed weldment designed for safety, ease of use, long life and minimum maintenance
• Designed to swivel 360° on anti-friction hardened steel balls
• Accepts wire rope up to 9/16 in. (14mm) in diameter
• Constructed from steel plates, the unit features a hardened steel sheave with a roller bearing
• Features guide rollers that when removed allow the passage of the eye of the winch line through the unit
• Torsion springs and hardened steel rollers on the swivel head provide constant wire rope contact
• Can be mounted in many locations, including the tail shelves of utility vehicles
• Easily installed and dismounted from the tail shelf using GMP mounting sockets (P/N 15836) and hardened steel bolts (P/N 17746). (Two of each P/N required)



Images are representative of product. Product may not be exactly as shown.
