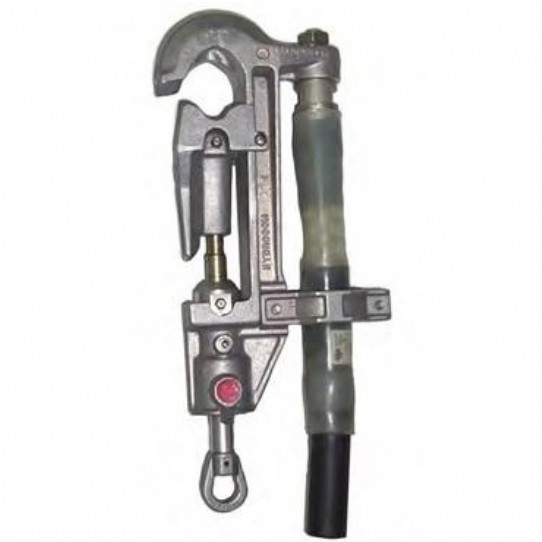

Universal Clamp, (7H) 30mm Transmission Ground c/w 3/4" Threads

Part # : HC-10041A
 Can be installed on all electrical facilities, apparatus, tubes, and conductors
  as well as various equipment (trucks, pulling equipment, etc.)
• Installation on conductor, round bus bar and grounding ball stud of 30 mm
• Tested to 5H (HC-10041) and 7H (HC-10041-A)
• Tested and certified only with MPS components
• Stress relief to reduce cable damage and serve as a shock damper
  if fault occurs, which protects cable strands
• Fitted to receive a 5/8-11 or 3/4-10 UNC threaded stud ferrule
• Lubrication chamber for upkeep of threads
• Double internal threads for fast installation and removal
• No exposed threads for minimal maintenance

Materials
Body and Eye Screw: Aluminum A356T6

MacLean Power Systems

Images are representative of product. Product may not be exactly as shown.
