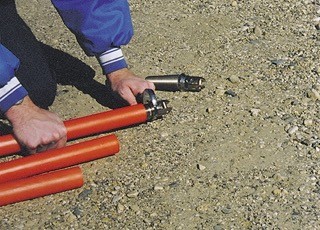

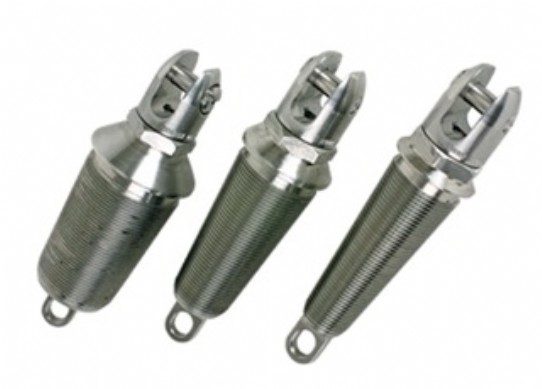

The Innerduct Pulling Eye is a hybrid tool that combines features from standard innerduct pulling eyes and Condux swivels. A swivel head prevents twisting and binding of the innerduct as it is installed. It eliminates the need for a separate swivel on each pulling eye when installing single innerducts into individual conduits or multiple innerducts into a single conduit. Its short length is an advantage on tight bends compared to using a separate swivel and pulling eye. Easily installed using a 13⁄8" deep socket or adjustable wrench.
NOTE: To determine correct pulling eye size, obtain the actual innerduct inside diameter (I.D.). The I.D. measurement must be greater than dimension A and smaller than dimension B.
|
|
|
Innerduct I.D |
|
Max OD |
Hole Dia. |
Slot Width |
Slot Depth |
Pin Dia. |
Pin Center |
|||||||
|
Part |
Nominal Size |
|
A - B |
A - B |
C |
D |
E |
F |
G |
H |
||||||
|
Number |
(in) |
(mm) |
(in) |
(mm) |
(in) |
(mm) |
(in) |
(mm) |
(in) |
(mm) |
(in) |
(mm) |
(in) |
(mm) |
(in) |
(mm) |
|
08960712* |
1 - 1 1/4 |
23 - 52 |
1.06 - 1.43 |
27 - 37 |
1.75 |
44 |
0.44 |
11 |
0.56 |
14 |
1.31 |
33 |
0.44 |
11 |
0.56 |
14 |
|
08960715* |
1 1/2 |
38 |
1.37 - 1.68 |
35 - 43 |
2.00 |
51 |
0.44 |
11 |
0.56 |
14 |
1.31 |
33 |
0.44 |
11 |
0.56 |
14 |
|
08960720* |
2 |
51 |
1.93 - 2.12 |
49 - 54 |
2.44 |
62 |
0.44 |
11 |
0.56 |
14 |
1.31 |
33 |
0.44 |
11 |
0.56 |
14 |
|
|
*Will fit all Condux Pulling Harnesses |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
