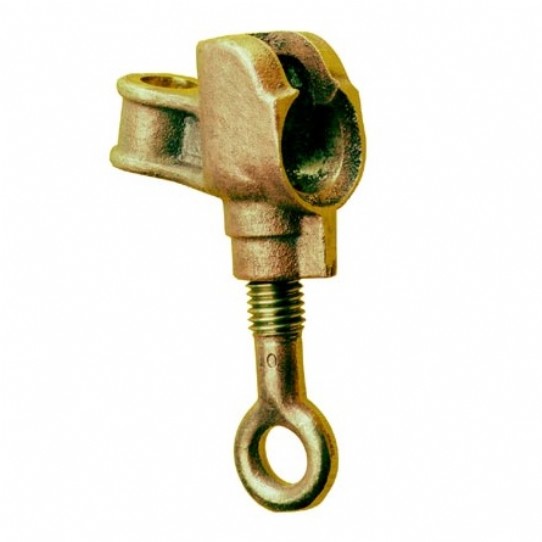

Socket Type Ground Clamp

Part # : C6002101
For restricted-space applications and as a truck-grounding system, this compact design delivers a high-current rating usually associated with only larges. It applies to a wide range of switching equipment, including:Industrial metalclad gear,Substations — indoors and out,Distribution — overhead and underground.For trucks, a ball stud permanently mounts on each body. Two styles and two ball-stud lengths adapt to many applications. bodies and eyescrews are a bronze alloy.
  • Ball-stud ground clamp for 1" (25mm) ball-studs
  • Tapped for 5/8"-11 UNC threaded ferrule
  • Rated 43kA for 15 cycles and 30kA for 30 cycles
  • Eye-screw for use with grip-all clamp-sticks



Chance

Images are representative of product. Product may not be exactly as shown.
