Slack Grip - Split Mesh, Lace Closing Pulling Grips are made of high strength galvanized steel in a double weave construction with a single eye. The split lace closing style grip is used when the cable end is not accessible. All grips feature a single offset eye for easy attachment to a pulling line. They are used to pull in slack for final placement of underground cable after it has been pulled in. They are also used for removing cable. Standard mesh lengths are generally used in restricted space for short pulls. Longer lengths are used for higher pulling loads where space is not restricted.
|
|
Cable Diameter |
|
Approximate Breaking |
|
|
|
|
|
|
|
Part |
|
Range |
|
Strength |
|

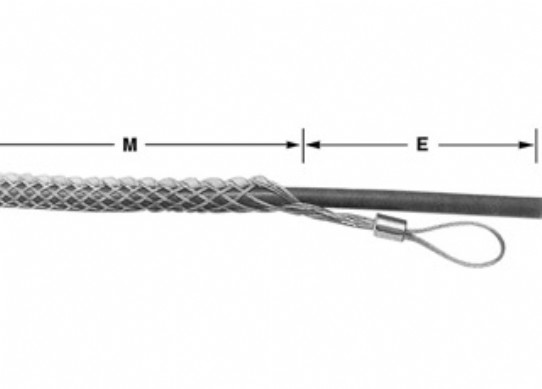

E |
|
M |
|
|
Number |
Description |
(in) |
(mm) |
(lbs) |
(N) |
(in) |
(mm) |
(in) |
(mm) |
|
08642731 |
033-09-003 |
.75 - .99 |
19 - 25 |
2,500 |
11,120 |
7 |
178 |
12 |
305 |
|
08642737 |
033-09-004 |
1.00 - 1.24 |
25 - 31 |
3,500 |
15,568 |
8 |
203 |
15 |
381 |
|
08642743 |
033-09-005 |
1.25 - 1.49 |
32 - 38 |
4,000 |
17,792 |
8 |
203 |
16 |
406 |
|
08642749 |
033-09-006 |
1.50 - 1.74 |
38 - 44 |
4,000 |
17,792 |
9 |
229 |
17 |
432 |
|
08642752 |
033-09-007 |
1.75 - 1.99 |
44 - 51 |
4,000 |
17,792 |
10 |
254 |
18 |
457 |
|
08642755 |
033-09-008 |
2.00 - 2.49 |
51 - 63 |
4,000 |
17,792 |
10 |
254 |
19 |
483 |
|
08642758 |
033-09-009 |
2.50 - 2.99 |
64 - 76 |
4,000 |
17,792 |
10 |
254 |
20 |
508 |
|
08642849 |
033-09-015 |
1.50 - 1.99 |
38 - 51 |
4,000 |
17,792 |
9 |
229 |
25 |
635 |
|
08642855 |
033-09-016 |
2.00 - 2.49 |
51 - 63 |
4,000 |
17,792 |
10 |
254 |
26 |
660 |
|
08642858 |
033-09-017 |
2.50 - 2.99 |
64 - 76 |
4,000 |
17,792 |
10 |
254 |
29 |
737 |
|
08642861 |
033-09-018 |
3.00 - 3.49 |
76 - 89 |
4,000 |
17,792 |
12 |
305 |
32 |
813 |
|
08642864 |
033-09-019 |
3.50 - 3.99 |
89 - 101 |
4,000 |
17,792 |
12 |
305 |
35 |
889 |
