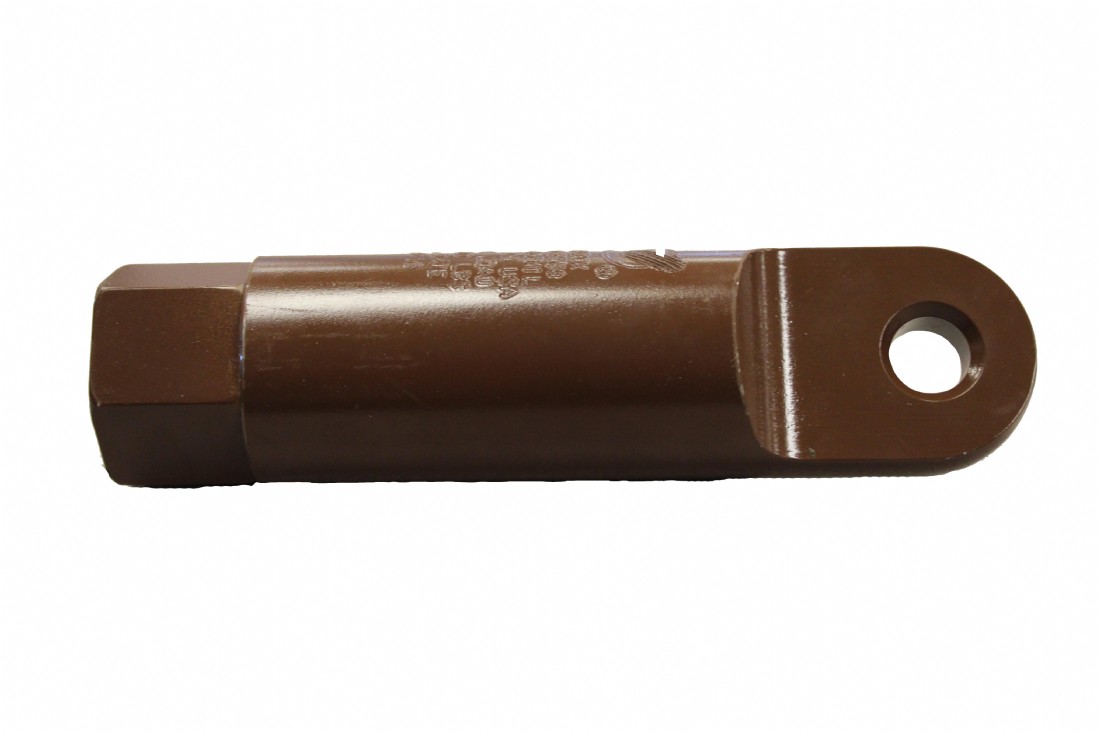

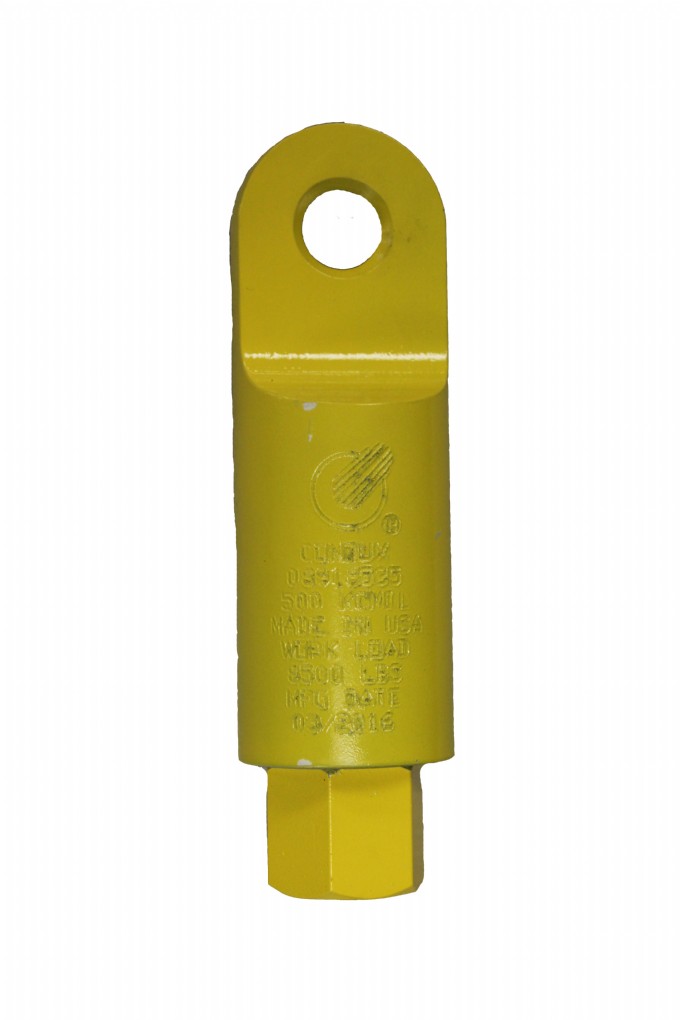

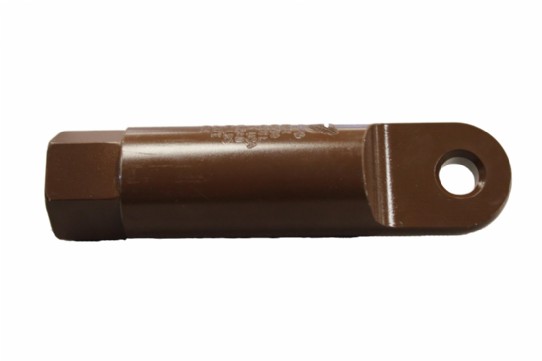

The Standard Head Power Pulling Eyes are an excellent alternative when pulling multiple cables into a single conduit. Single conductors can be attached to a Condux Multiple Pulling Harness with links or with Condux swivels. Installation is then simplified to a single pull of one assembly. Each Standard Power Pulling Eye includes an eye socket, sleeve nut, and plug.
|
|
|
|
Max |
|
Max |
|
Hole Dia. |
|
Eye Thickness |
|
Replacement Plug |
Working Load |
|
|
Part |
Cable |
|
Conductor Dia. |
|
Eye O.D. |
|
D |
|
T |
|
|
|
|
|
Number |
Size |
Color |
(in) |
(mm) |
(in) |
(mm) |
(in) |
(mm) |
(in) |
(mm) |
|
lbs |
KN |
|
08918455 |
6000 kcmil |
Orange |
2.785 |
71 |
4.500 |
114 |
1.31 |
33 |
1.50 |
38 |
8918423 |
59,000 |
262.4 |
|
08918440 |
5000 kcmil |
White |
2.500 |
64 |
4.500 |
114 |
1.31 |
33 |
1.50 |
38 |
8918423 |
59,000 |
262.4 |
|
08918450 |
4000 kcmil |
Yellow |
2.220 |
56 |
4.000 |
102 |
1.25 |
32 |
1.50 |
38 |
8918423 |
42,500 |
189.0 |
|
08918445 |
3500 kcmil |
Black |
2.160 |
55 |
4.000 |
102 |
1.25 |
32 |
1.50 |
38 |
8918423 |
42,500 |
189.0 |
|
08918430 |
3000 kcmil |
Gray |
2.030 |
52 |
4.000 |
102 |
0.88 |
22 |
0.94 |
24 |
8918423 |
26,000 |
115.6 |
|
08918585 |
2750 kcmil |
White |
1.964 |
50 |
4.000 |
102 |
1.00 |
25 |
0.50 |
13 |
8918423 |
26,000 |
115.6 |
|
08918580 |
2500 kcmil |
Green |
1.923 |
49 |
4.000 |
102 |
1.00 |
25 |
0.50 |
13 |
8918123 |
26,000 |
115.6 |
|
08918575 |
2000 kcmil |
Red |
1.700 |
43 |
2.625 |
67 |
1.00 |
25 |
0.50 |
13 |
8918023 |
25,000 |
111.2 |
|
08918570 |
1750 kcmil |
Yellow |
1.625 |
41 |
2.625 |
67 |
1.00 |
25 |
0.50 |
13 |
8917723 |
25,000 |
111.2 |
|
08918565 |
1500 kcmil |
Black |
1.469 |
37 |
2.625 |
67 |
1.00 |
25 |
0.50 |
13 |
8917923 |
25,000 |
111.2 |
|
08918560 |
1250 kcmil |
Blue |
1.328 |
34 |
2.625 |
67 |
1.00 |
25 |
0.50 |
13 |
8917823 |
25,000 |
111.2 |
|
08918555 |
1000 kcmil |
Orange |
1.203 |
31 |
2.000 |
51 |
1.00 |
25 |
0.50 |
13 |
8917123 |
13,500 |
60.0 |
|
08918550 |
750 kcmil |
Brown |
1.031 |
26 |
2.000 |
51 |
0.60 |
15 |
0.43 |
11 |
8917223 |
13,500 |
60.0 |
|
08918545 |
700 kcmil |
Gray |
1.000 |
25 |
2.000 |
51 |
0.60 |
15 |
0.43 |
11 |
8917323 |
13,500 |
60.0 |
|
08918540 |
600 kcmil |
Green |
0.906 |
23 |
2.000 |
51 |
0.60 |
15 |
0.43 |
11 |
8918223 |
13,500 |
60.0 |
|
08918535 |
500 kcmil |
Yellow |
0.843 |
21 |
1.880 |
48 |
0.81 |
21 |
0.50 |
13 |
8917423 |
8,500 |
37.8 |
|
08918530 |
400 kcmil |
Black |
0.750 |
18 |
1.880 |
48 |
0.80 |
21 |
0.50 |
13 |
8918323 |
8,500 |
37.8 |
|
08918525 |
350 kcmil |
White |
0.781 |
20 |
1.880 |
48 |
0.755 |
19 |
0.500 |
13 |
8917523 |
8,500 |
37.8 |
|
08918520 |
250 kcmil |
Blue |
0.640 |
16 |
1.250 |
32 |
0.63 |
16 |
0.50 |
13 |
8960323 |
6,500 |
28.9 |
|
08918515 |
4/0 AWG |
Green |
0.531 |
13 |
1.250 |
32 |
0.50 |
13 |
0.34 |
9 |
8960423 |
6,500 |
28.9 |
|
08918510 |
3/0 AWG |
Orange |
0.475 |
12 |
1.250 |
32 |
0.50 |
13 |
0.34 |
9 |
8960923 |
6,500 |
28.9 |
|
08918505 |
2/0 AWG |
Black |
0.431 |
11 |
1.250 |
32 |
0.50 |
13 |
0.34 |
9 |
8960823 |
6,500 |
28.9 |
|
08918500 |
1/0 AWG |
Red |
0.390 |
10 |
1.250 |
32 |
0.50 |
13 |
0.34 |
9 |
8960523 |
6,500 |
28.9 |
