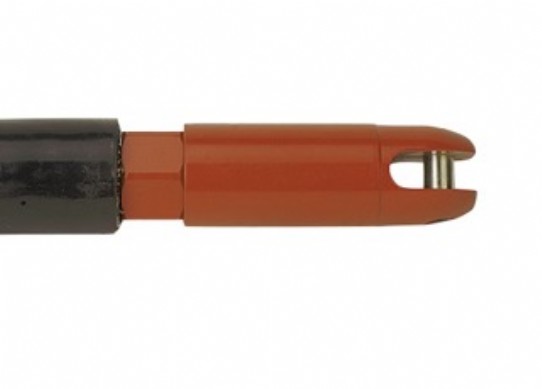

The Clevis Head Power Pulling Eyes feature a slotted head with clevis pin to allow direct attachment to the Condux multiple pulling harness. When pulling multiple cables into a single conduit, the conductors can be attached to a harness and installation is simplified to a single pull of one assembly. Each Clevis Head Power Pulling Eye includes a clevis socket, sleeve nut, and plug.
+ - Will fit 3/8"" (9.5 mm) and 1/2"" (13 mm) cable pulling harnesses.
* - Will fit all Condux pulling harnesses.
** - Will fit the 1/8"" (3 mm) and 1/4"" (6 mm) cable pulling harnesses.
|
|
|
Max Conductor |
|
Max Eye OD |
|
Slot Width |
|
Slot Depth |
|
Pin Dia. |
|
Pin Center |
|
Replacement Plug |
Part Number |
|
|
|
Part |
Cable |
|
Diameter |
|
A |
|
B |
|
C |
|
D |
|
E |
|
Part |
|
|
|
Number |
Size |
Color |
(in) |
(mm) |
(in) |
(mm) |
(in) |
(mm) |
(in) |
(mm) |
(in) |
(mm) |
(in) |
(mm) |
Number |
(lbs) |
(KN) |
|
08918150 |
2500 kcmil |
Green |
1.824 |
46 |
3.00 |
76 |
1.00 |
25 |
2.80 |
71 |
0.88 |
22 |
1.23 |
31 |
8918123 |
25,000 |
111.2 |
|
08918050 |
2000 kcmil |
Red |
1.601 |
41 |
2.50 |
64 |
1.00 |
25 |
2.80 |
71 |
0.88 |
22 |
1.23 |
31 |
8918023 |
25,000 |
111.2 |
|
08917750 |
1750 kcmil |
Yellow |
1.526 |
39 |
2.50 |
64 |
1.00 |
25 |
2.80 |
71 |
0.88 |
22 |
1.23 |
31 |
8917723 |
25,000 |
111.2 |
|
08917950* |
1500 kcmil |
Black |
1.412 |
36 |
2.38 |
60 |
0.75 |
19 |
1.78 |
45 |
0.63 |
16 |
0.72 |
18 |
8917923 |
15,000 |
66.7 |
|
08917850* |
1250 kcmil |
Blue |
1.289 |
33 |
2.25 |
57 |
0.75 |
19 |
1.78 |
45 |
0.63 |
16 |
0.72 |
18 |
8917823 |
15,000 |
66.7 |
|
08917150* |
1000 kcmil |
Orange |
1.152 |
29 |
2.06 |
52 |
0.75 |
19 |
1.78 |
45 |
0.63 |
16 |
0.72 |
18 |
8917123 |
15,000 |
66.7 |
|
08917250* |
750 kcmil |
Brown |
0.998 |
25 |
1.75 |
44 |
0.63 |
16 |
1.59 |
40 |
0.56 |
14 |
0.78 |
20 |
8917223 |
10,000 |
44.4 |
|
08917350* |
700 kcmil |
Gray |
0.964 |
24 |
1.75 |
44 |
0.63 |
16 |
1.59 |
40 |
0.56 |
14 |
0.78 |
20 |
8917323 |
10,000 |
44.4 |
|
08918250* |
600 kcmil |
Green |
0.937 |
24 |
1.75 |
44 |
0.63 |
16 |
1.59 |
40 |
0.56 |
14 |
0.78 |
19 |
8918223 |
10,000 |
44.4 |
|
08917450* |
500 kcmil |
Yellow |
0.813 |
21 |
1.44 |
37 |
0.59 |
15 |
1.41 |
36 |
0.44 |
11 |
0.59 |
15 |
8917423 |
10,000 |
44.4 |
|
08918350** |
400 kcmil |
Black |
0.713 |
18 |
1.44 |
37 |
0.56 |
11 |
1.40 |
36 |
0.44 |
11 |
0.59 |
15 |
8918323 |
7,000 |
31.1 |
|
08917550* |
350 kcmil |
White |
0.681 |
17 |
1.25 |
32 |
0.56 |
14 |
1.34 |
34 |
0.38 |
10 |
0.59 |
15 |
8917523 |
5,000 |
22.2 |
|
08960350** |
250 kcmil |
Blue |
0.575 |
15 |
1.13 |
29 |
0.38 |
10 |
1.06 |
27 |
0.31 |
8 |
0.53 |
13 |
8960323 |
2,500 |
11.1 |
|
08960450** |
4/0 AWG |
Green |
0.528 |
13 |
1.00 |
25 |
0.38 |
10 |
1.06 |
27 |
0.31 |
8 |
0.53 |
13 |
8960423 |
2,500 |
11.1 |
|
08960950** |
3/0 AWG |
Orange |
0.475 |
12 |
1.00 |
25 |
0.38 |
10 |
1.06 |
27 |
0.31 |
8 |
0.53 |
13 |
8960923 |
2,500 |
11.1 |
|
08960850** |
2/0 AWG |
Black |
0.419 |
11 |
1.00 |
25 |
0.38 |
10 |
1.06 |
27 |
0.31 |
8 |
0.53 |
13 |
8960823 |
2,500 |
11.1 |
|
08960550** |
1/0 AWG |
Red |
0.373 |
9 |
0.88 |
22 |
0.38 |
10 |
1.06 |
27 |
0.31 |
8 |
0.53 |
13 |
8960523 |
2,500 |
11.1 |
|
+ Will fit 3/8" (19 mm) & 1/2" (13 mm) cable pulling harness |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
* Will fit all Condux Pulling Harnesses |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
** Will fit the 1/8" (3 mm) and 1/4" (6 mm) cable pulling harnesses |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
