Power Dart

Part # : 08030003

The Power Dart® Blower is a pneumatic rodding system especially suited for long duct runs. A three-motor system allows you to choose the right speed for your needs. With all three motors engaged, the Power Dart Blower will deliver up to 300 cfm (8.5 m3/min) of air at 3 psi (.2 bar) max. pressure, easily blowing 1⁄2" (13 mm) poly line  or measuring  tape  over  2,000  feet  (610  m)  in  conduit  up  to 6 inches (152 mm) in diameter.

110 Volt model includes a 30 amp twist plug.



08030011    Carrier Kit Option for Power Dart Blower Includes:

08067900 2" (51 mm) Line Carrier x 2

08030300 4" (102 mm) Line Carrier

08031820 2" (51 mm) Duct Projectile x 2

08031840 4" (102 mm) Duct Projectile

08033532 Carrier, Chute 2.00 Nylon

08033548 Carrier, Chute 3.00 Nylon

08033564 Carrier, Chute 4.00 Nylon

08039400 Seal-Off Body Handle

08066800 Power Dart Seal-Off 1 1/2" 2 1/2" (3864mm)

08039500 Power Dart Seal-Off 2 1/2" 6" (64152mm)

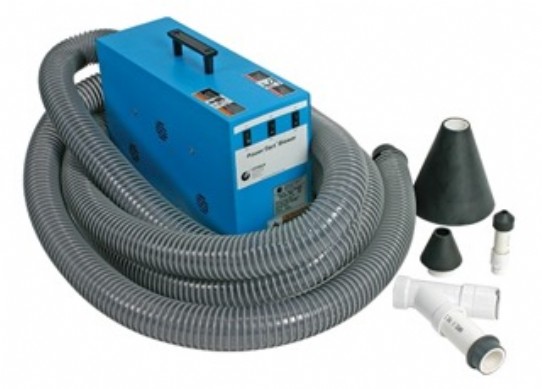

What's in the box?

110V Power Dart Blower Unit

Hose

Body Seal-Off & Seal-Offs for 1/2" - 6" (13 mm-152 mm) Conduit



Carriers not included.

Images are representative of product. Product may not be exactly as shown.
