NDB-DOC-3™

Part # : NDB-DOC-3

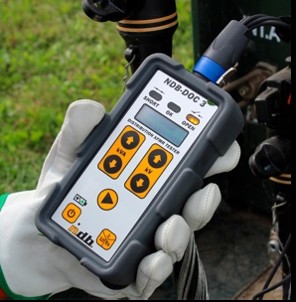

The NDB-DOC-3™ is a test instrument designed for distribution networks transformers from 5kVA to 3MVA. It can determine the presence of short circuits or open circuits in the distribution transformer primary winding & also short circuits on the secondary winding.



The NDB-DOC-3™ is designed to be operated without disconnecting the transformer’s secondary windings from their loads.



Highlights:

• De-energized transformers from 5kVA to 3MVA
• Measurement by contact on the transformer primary bushing
• Detects primary transformer short-circuit, open circuit, & secondary short circuits
• Visual and audible warning



Specs:

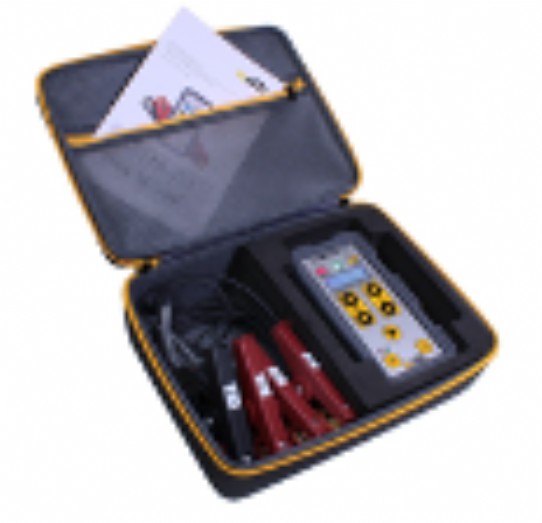

• Transformer tester 5 to 3000 KVA (NDB-DOC3)
• Test leads with alligator clip terminals (NDB-DOC-02)
• Carrying case (BOX113A + Foam)
• User manual (MU037) (download PDF only)
• W&d 1.3kg-33x28x15cm / 3lbs-13x11x6in



Options for NDB-DOC-3:

NDB-DOC3-STRAP	NDB-DOC-3 magnetic holder strap (ACC-103)
NDB-DOC3-PIN-STP	NDB-DOC-3 elbow pin adapter (Qty of 1 pin)
NDB-DOC3-PIN-STP-KIT	NDB-DOC-3 elbow pin adapter kit (Set of 3 pins)
WIR-X-171	Firmware update cable for NDB-DOC3



Images are representative of product. Product may not be exactly as shown.
