NDB-DOC™

Part # : NDB-DOC

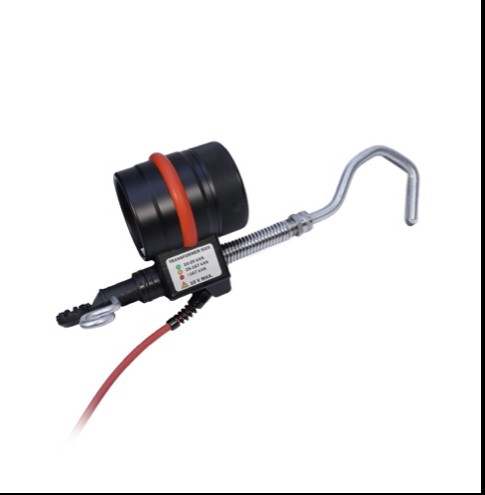

The NDB-DOC™ is a test instrument designed for distribution networks transformers from 10kVA to 2500kVA. It can determine the presence of short circuits or an open circuit in the distribution transformer primary winding & also short circuits on the secondary winding. The NDB-DOC™ is designed to be operated from an arial device or from the ground at the end of a hot stick without disconnecting the transformer’s secondary windings.



Highlights:

• De-energized transformers from 10kVA to 2500kVA
• Measurement by contact on the transformer primary bushing
• Detects primary transformer short-circuit, open circuit, & secondary short circuits
• Visual and audible warning

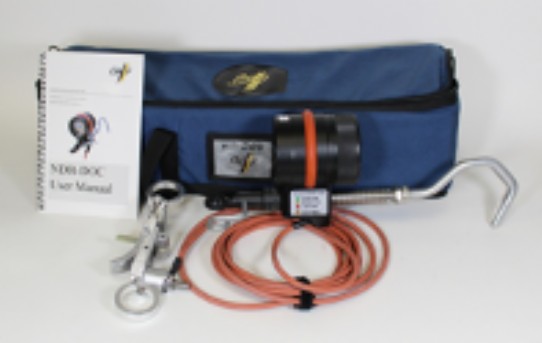

Specs:

• Transformer tester 10 to 2500 KVA (NDB-DOC)
• Straight electrode for padmount transformer (MQN438)
• Transportation soft-case (BOX-056)
• User manual (MU035) (download PDF only)
• Calibration certificate
• W&d 2.7kg-61x20x20cm / 6lbs-24x8x8in

Images are representative of product. Product may not be exactly as shown.
