Meter, 0-40kv Potential c/w Proximity Feature

Part # : VDA040PUS

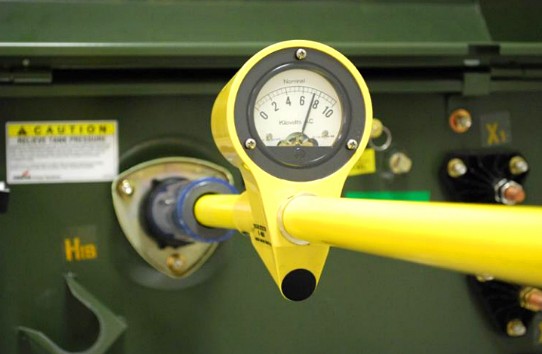

The VDAO40P is a Dual Application Analog Voltage Detector.

The VDAO40P Features:

• Detects 0-40kV Line to Ground (0-69kV Phase to Phase)
• A Proximity or Direct Contact on Overhead and Underground Systems
• Easy to Read Analog Scale
• Detect Voltage from the Ground on Bare Overhead Lines when Hand Held
• Test Secondary Voltage on Bare or Insulated Cables
• Test Capacitive Test Points
• The Detector Indicates Line to Ground Values for Nominal or Induced Voltages
• The 5 - Position Selector Switch is Calibrated for Height above Ground to Compensate for a Capacitive Coupling Effect
• Shielded to Minimize Stray Field Interference
• For Your Safety, the Detector Includes Overload Protection up to 500kV
• Internal Backlight available for Night Use
• 15kV/25kV/35kV Bushing Adapters are Available for Underground use up to 35kV
• Water Resistant, and a Strong Construction Designed to Withstand Wear
• Contained in a Highly Durable Padded Carrying Case

Each kit contains a straight probe (81280LPM), hook probe (81280LHM), instruction manual, padded carrying case (VDA18B).
