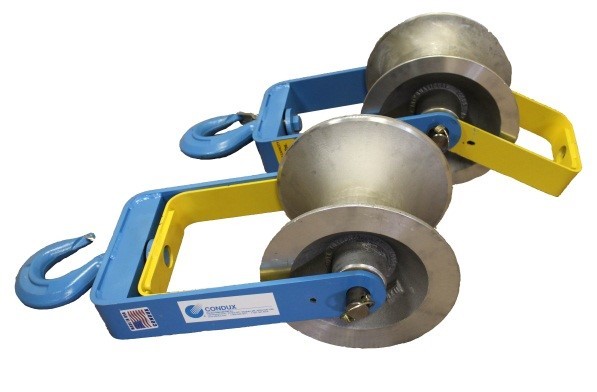

Heavy Duty Hanger Sheaves

Part # :

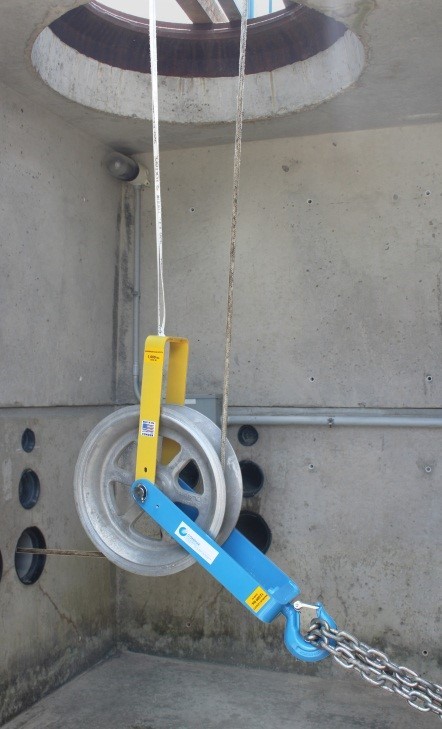

Tie off in the manhole to guide cable into the duct. 12,000 lbs. (53,378 N) cable tension load capacity. Includes light duty arm which conveniently stores inside the heavy duty arm when not in use. Also may be used with alignment arm for cable removal (5" sheaves only). Alignment arm sold separately.



Part Number	Sheave Size
	(in) (mm)
08042800	5x11" (127x279mm)
08042810	5x20" (127x508mm)
08042820	5x26.5" (127x673mm)
08042830	6x11" (152x279mm)
08042840	8x11" (203x279mm)

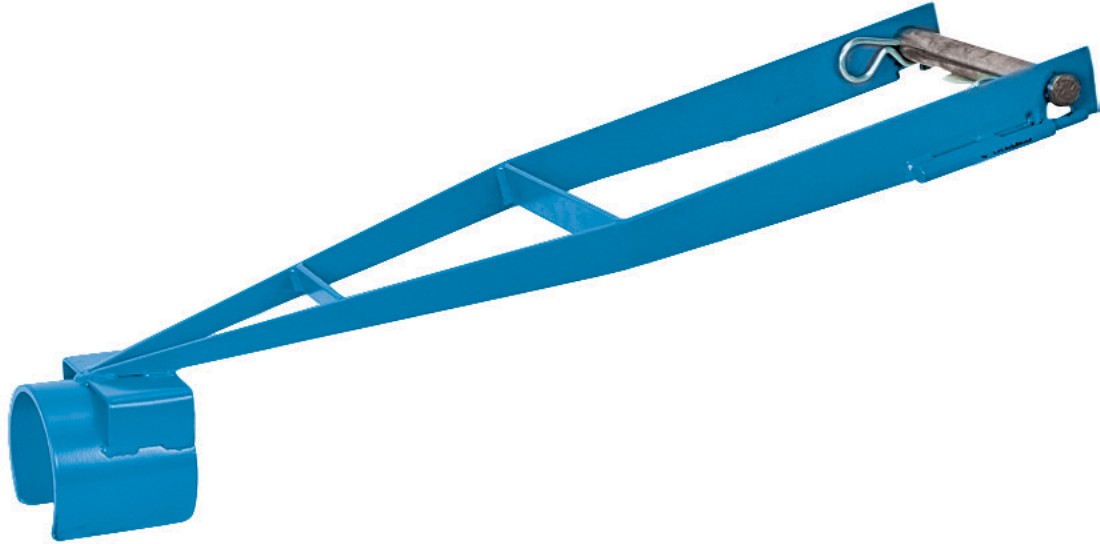

08045901	Alignment Arm for 5" Sheave



Images are representative of product. Product may not be exactly as shown.
