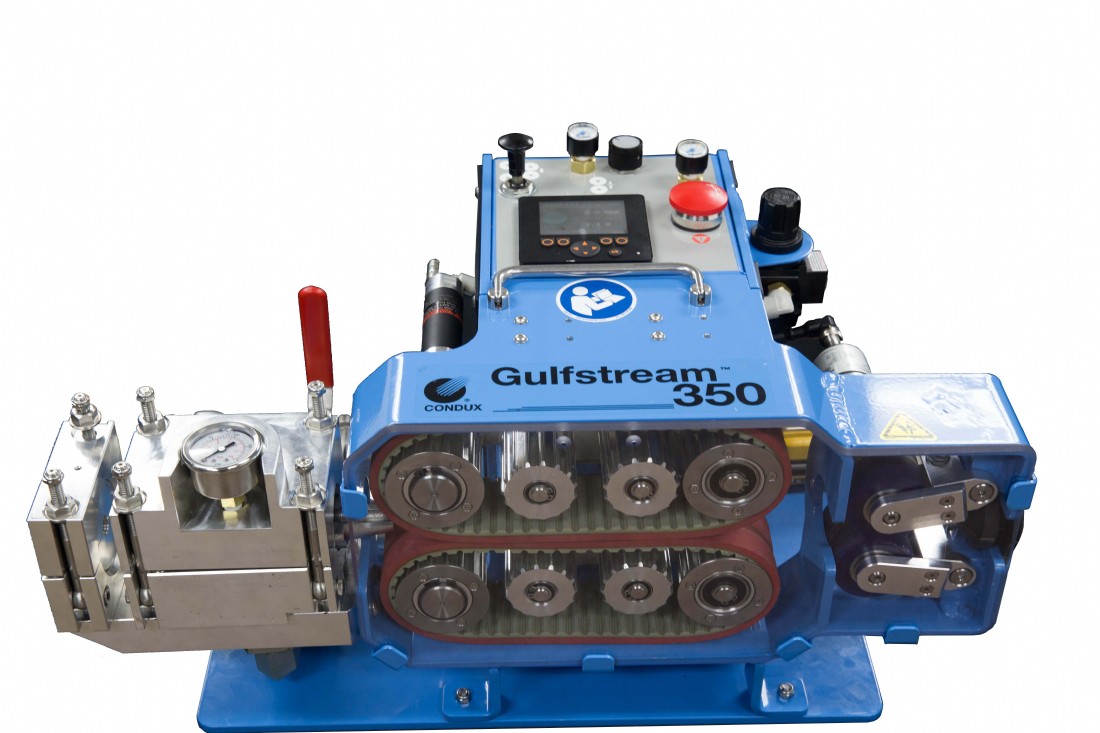

The new Condux Gulfstream 350 Fiber Optic Cable Blower is all pneumatic and comes complete with a convenient storage case. With the ability to install fiber from 0.16" - 0.62" (4 - 16mm) into duct ranging from 0.50" - 1.25" (8 - 42mm), the Gulfstream 350 provides a mechanical counter, speed indicator, and maximum belt visibility. Complete the order with cable packs and duct packs to meet the exact job requirements.
Key Facts
Microduct Range: 8mm - 42mm (.50" - 1.25")
Fiber Cable Range: 4mm - 16mm (.16" - .62")
Weight: 57lbs (26kg)
Pneumatic Drive System
Maximum Push Force: 311N (70lbs)
Average Speed: 0-100 m/min (0-330 ft/min)
Microduct:
• Air Pressure Requirements (BAR)*: 10-15
• Air Pressure Requirements (PSI)*: 150-205
• Flow Requirements (CMM)*: 0.5-1.5
• Flow Requirements (CFM)*: 10-35
Traditional Duct:
• Air Pressure Requirements (BAR)*: 7-10
• Air Pressure Requirements (PSI)*: 100-150
• Flow Requirements (CMM)*: 5-11
• Flow Requirements (CFM)*: 185-375
Mechanical Counter/Real Time Distance (Meters and Feet)
Speed Indicator (Meters and Feet)
No Tools Required for Belt Replacement
Maximum Belt Visibility, Transparent Covers for Easy Monitoring
Emergency Stop Button
Pressure Filter w/ Water Separator & Bleed Valve
Lightweight Case
|
Part Number |
Description |
|
08784601 |
Gulfstream 350 Pneumatic Blower base kit |
|
08784605 |

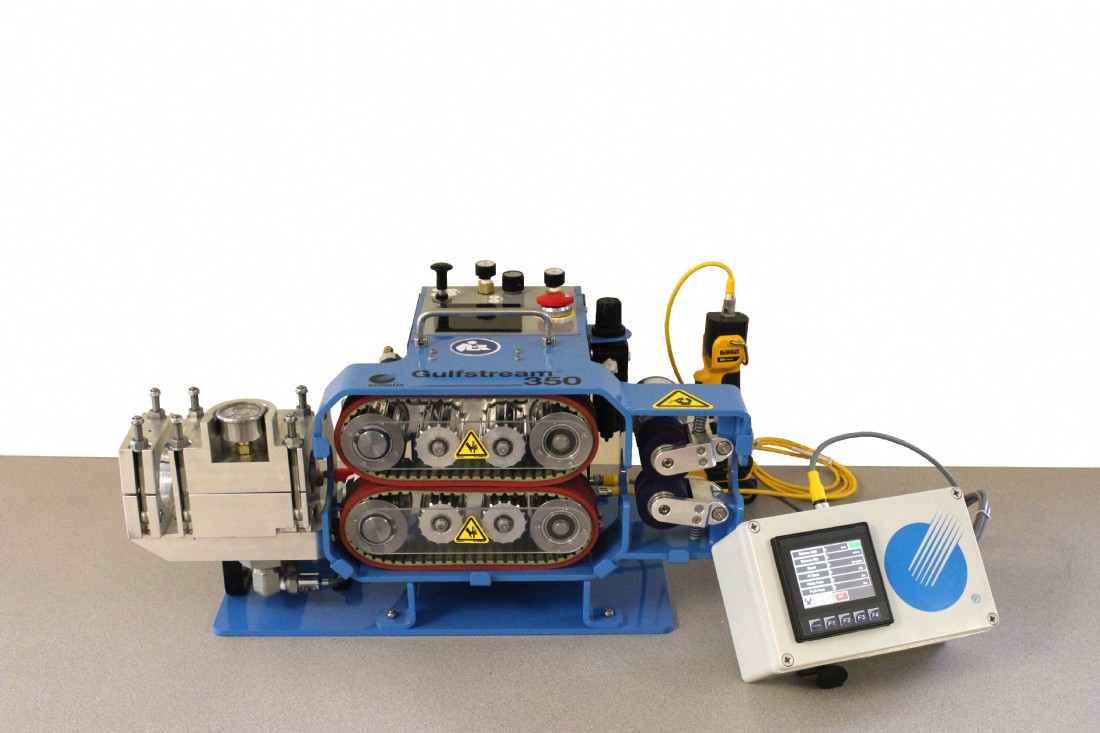

Gulfstream 350 Pneumatic Blower with electronics |
|
Cable Packs |
|
|
08781160 |
4.0mm - 4.5mm Cable Pack |
|
Includes |
|
|
08780960K |
Cable Seal Kit (4.0mm) |
|
08780961K |
Cable Seal Kit (4.5mm) |
|
08643753 |
Cable Grip (.10 - .22-10 900#) |
|
08781165 |
Venturi (4.0mm - 4.5mm) |
|
08781161 |
4.6mm - 8.0mm Cable Pack |
|
Includes |
|
|
08780962K |
Cable Seal Kit (5.0mm) |
|
08780963K |
Cable Seal Kit (5.5mm) |
|
08780964K |
Cable Seal Kit (6.0mm) |
|
08780965K |
Cable Seal Kit (6.5mm) |
|
08780966K |
Cable Seal Kit (7.0mm) |
|
08780967K |
Cable Seal Kit (7.5mm) |
|
08780968K |
Cable Seal Kit (8.0mm) |
|
08643754 |
Cable Grip (.21 - .35-14 1400#) |
|
08643755 |
Cable Grip (.32 - .48-19 2000#) |
|
08781166 |
Venturi (4.6mm - 8.0mm) |
|
08781162 |
8.1mm - 12.0mm Cable Pack |
|
Includes |
|
|
08780969K |
Cable Seal Kit (8.5mm) |
|
08780970K |
Cable Seal Kit (9.0mm) |
|
08780971K |
Cable Seal Kit (9.5mm) |
|
08780972K |
Cable Seal Kit (10.0mm) |
|
08780973K |
Cable Seal Kit (10.5mm) |
|
08780974K |
Cable Seal Kit (11.0mm) |
|
08780975K |
Cable Seal Kit (11.5mm) |
|
08780976K |
Cable Seal Kit (12.0mm) |
|
08643755 |
Cable Grip (.32 - .48-19 2000#) |
|
08781167 |
Venturi (8.1mm - 12.0mm) |
|
08781163 |
12.1mm - 15.5mm Cable Pack |
|
08780944K |
Cable Seal Kit (12.5mm) |
|
08780978K |
Cable Seal Kit (13.0mm) |
|
08780979K |
Cable Seal Kit (13.5mm) |
|
08780980K |
Cable Seal Kit (14.0mm) |
|
08780981K |
Cable Seal Kit (14.5mm) |
|
08780982K |
Cable Seal Kit (15.0mm) |
|
08780983K |
Cable Seal Kit (15.5mm) |
|
08643756 |
Cable Grip (.42 - .61-21 2500#) |
|
08781168 |
Venturi (12.1mm - 15.5mm) |
|
08781164 |
15.6mm - 16.5mm Cable Seal Kit |
|
08780984K |
Cable Seal Kit (16.0mm) |
|
08780985K |
Cable Seal Kit (16.5mm) |
|
08643757 |
Cable Grip (.53 - .74-23 3000# |
|
08781169 |
Venturi (15.6 M- 16.5mm) |
|
08781117 |
Nylatron Venturi for Flat Fiber (10.4 x 5.5mm) |
|
08781118 |
Nylatron Venturi for Flat Fiber (15.2 x 6.7mm) |
