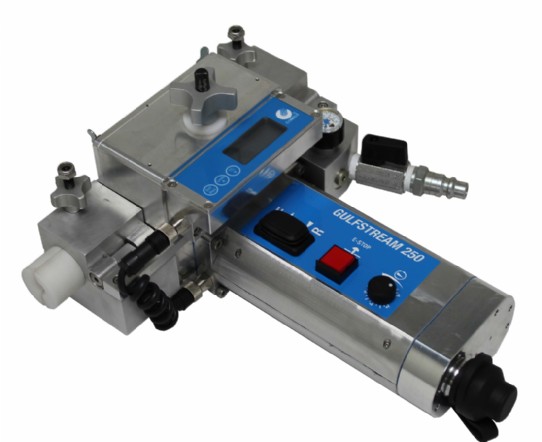

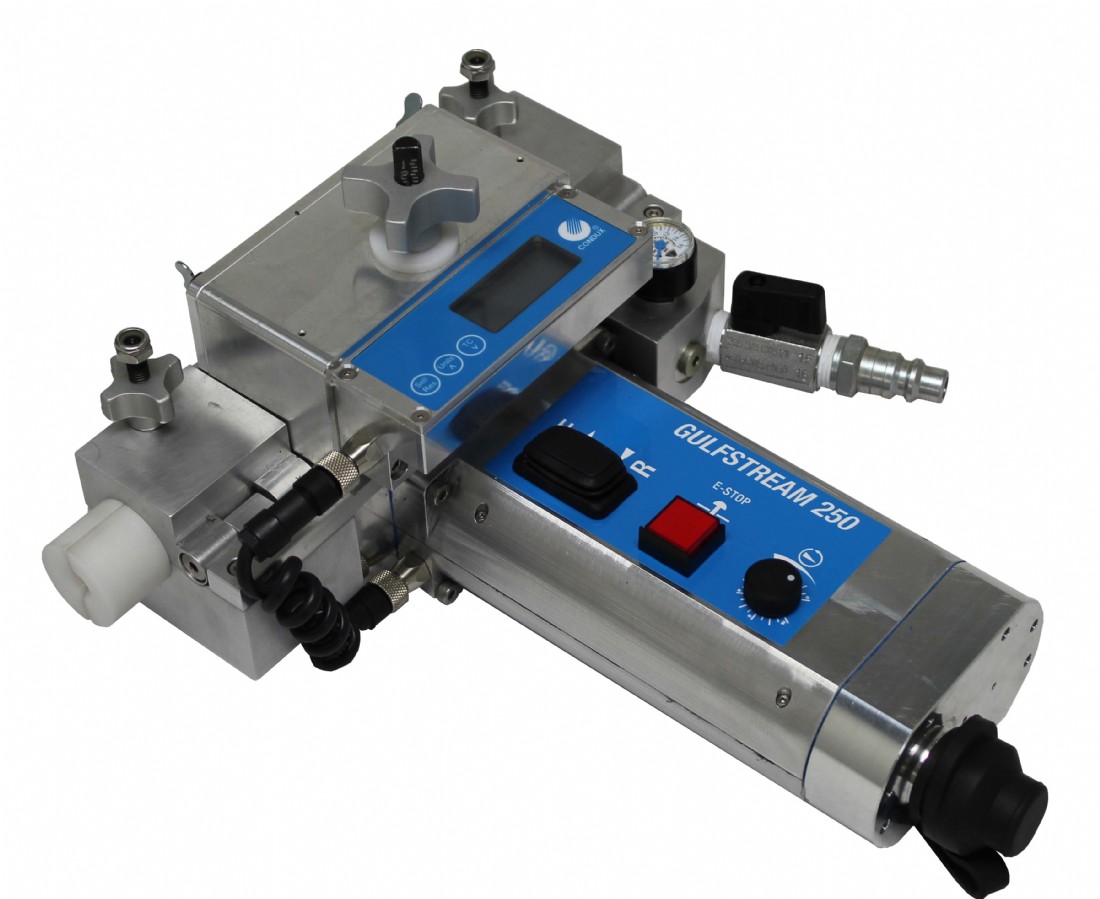

The Gulfstream 250 is an effective and economical approach to middle mile fiber installations. Able to install fiber optic cable ranging in size from 2.5mm - 8mm into duct from 5mm - 18mm, the Gulfstream 250 offers portability, convenience and power for standard middle projects in a cost effective package. The unit features user-friendly controls that help optimize the fiber optic cable installation process.
*The Gulfstream 250 no longer uses batteries for power.
48v power supply included with kits.
Blower Size
Dimensions: 11” (l) x 8” (w) x 6”(h)
279mm (l) x 203mm (w) x 152mm(h)
Weight: 5lbs/2.27kg
Microduct Range
5 – 18mm
Built in clamping system with interchangeable seals
Fiber Cable Range
2.5 – 8mm
8.1 - 9.75mm (with specialty wheels, not included in kit)

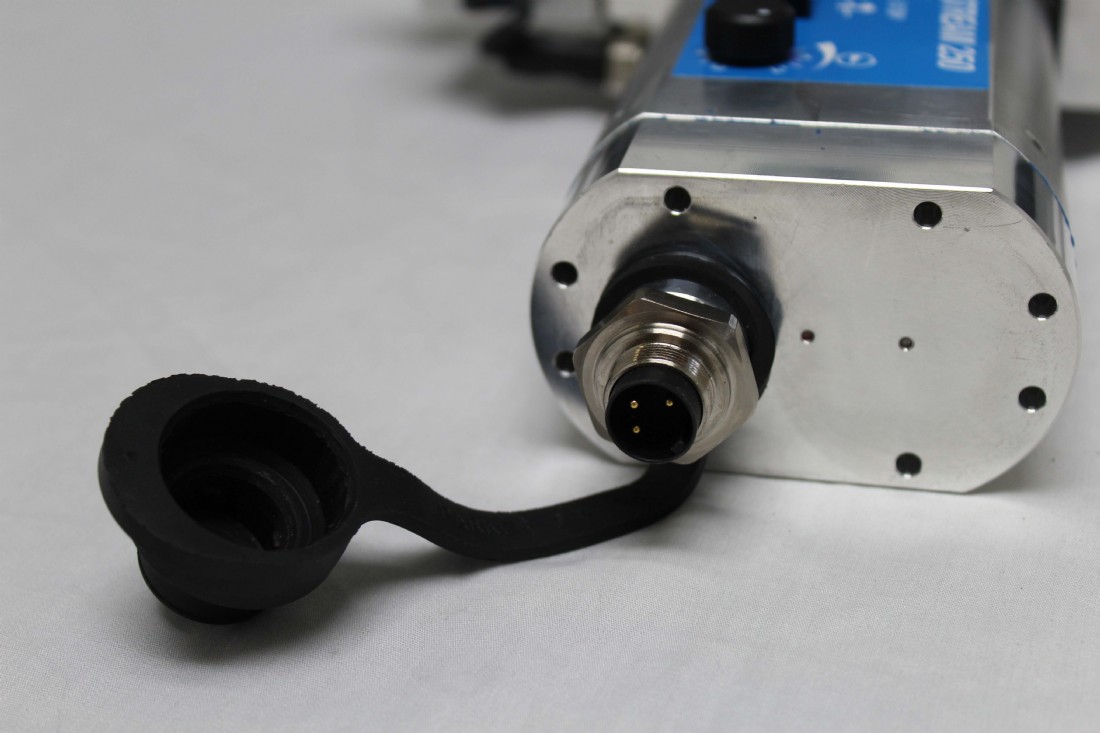

Power System
Electric drive motor
48v AC Power Supply (Plugged into wall or 1000w Generator)

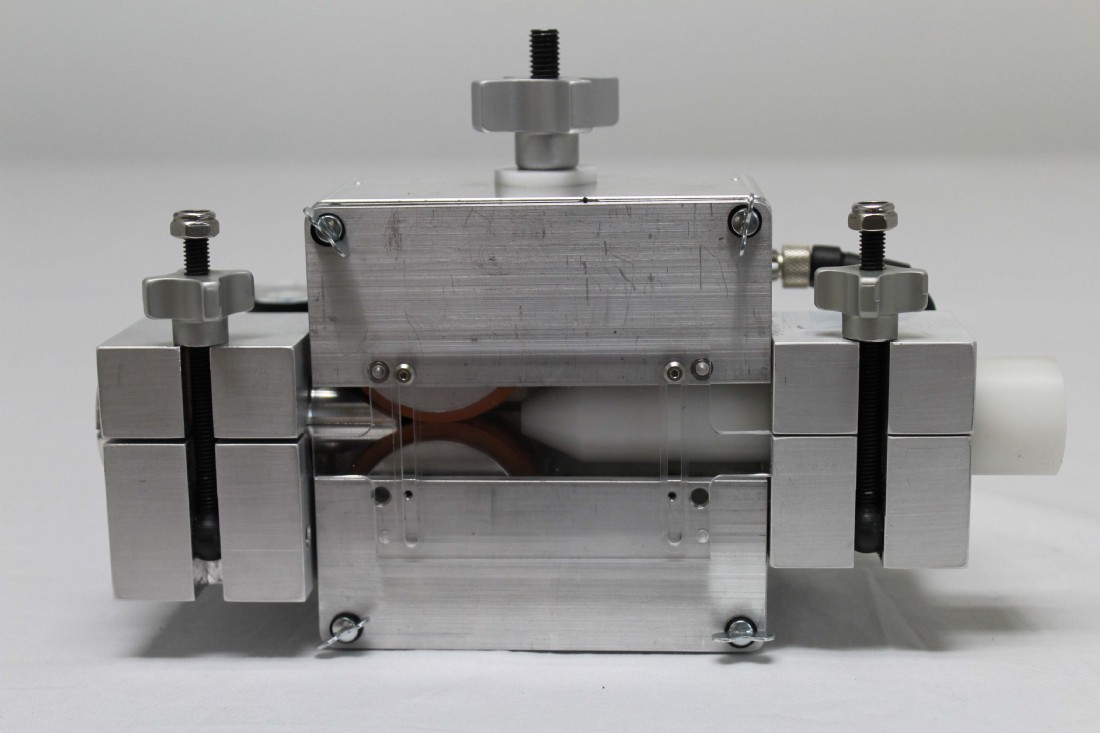

Drive
Wheel drive
Maximum push force of 30lbs (134N)
Speed: 0-150fpm (0 – 45mpm)
Controls
Forward/reverse switch
Speed control to regulate motor speed
Screen that monitors speed, distance and life counter
Emergency stop button for instant shut down
Push force adjustment (crash test kick out)
Force and Flow
Air connections: 3/8" EU or US Coupling
Air Pressure Requirements (BAR)*: 10-15 Bar
Air Pressure Requirements (PSI)*: 150-205 PSI
Flow Requirements (CMM)*: 0.5-1.5 CMM
Flow Requirements (CFM)*: 10-35 CFM
*Air pressure and flow requirements depends on the size of duct and the size of fiber being installed into that duct.
|
Part Number |
Description |
|
08783805-50 |
Gulfstream 250 Micro Fiber Blower, Standard US Kit |
|
08783805-51 |
Gulfstream 250 Micro Fiber Blower, Standard INTL Kit |
|
08783805-53 |
Gulfstream 250 Micro Fiber Blower, Base US Kit (No Duct Packs, Cable Seals, or Tripod) |
|
08783805-54 |
Gulfstream 250 Micro Fiber Blower, Base INTL Kit (No Duct Packs, Cable Seals, or Tripod) |
|
Included in Kits |
|
|
02290961 |
Plastic Case |
|
2291020 |
Hex Key Set |
|
08783427 |
Large Groove Green Belt |
|
08783076 |
Seal Kit |
|
08783519 |
O-Ring Kit (qty 5) |
|
08783425 |
Flat Orange Belt |
|
08783770 |
Rear Insert Guide (3-4mm) |
|
08787771 |
Rear Insert Guide (4-7mm) |
|
08787772 |
Rear Insert Guide (7-10mm) |
|
08787060 |
AC Power Supply, 48v - US |
|
08783508 |
AC Power Supply, 48v - Intl (Must install appropriate plug) |
|
08782212 |
Adjustable Tripod Plate (Not included in Base Kit) |
|
02290383 |
Adjustable Tripod (Not included in Base Kit) |
|
|
See "Gulfstream 250 Accessories" for Duct Packs and Cable Seals Included in Standard Kit (*) |
|

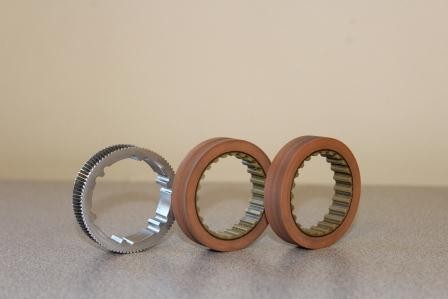

Specialty Wheels |
|
|
08783819 |
2.5-4mm - Specialty Wheel - Fat, Groove Orange (2 req'd) |
|
08783884 |
3.5-4.3mm - Serrated Wet Wheel (1 req'd) |
|
08783885 |
4.4-5.5mm - Serrated Wet Wheel (1 req'd) |
|
08783886 |
5.6-7.75mm Serrated Wet Wheel (1 req'd) |
|
08783887 |
7.75-9.75mm Serrated Wet Wheel (1req'd) |
