Ground Clamp 4.5" Bus - 4/0

Part # : T6000819

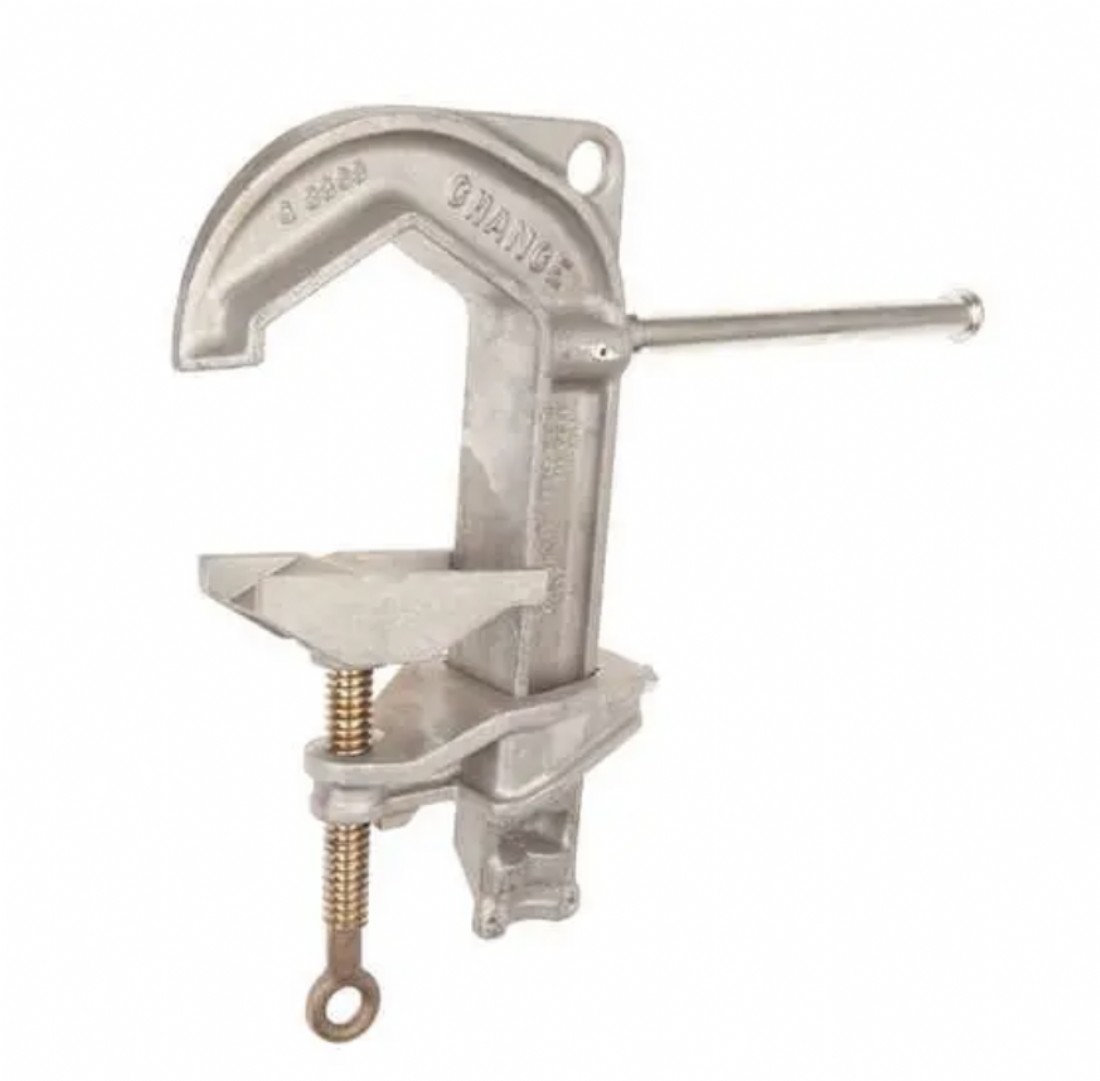

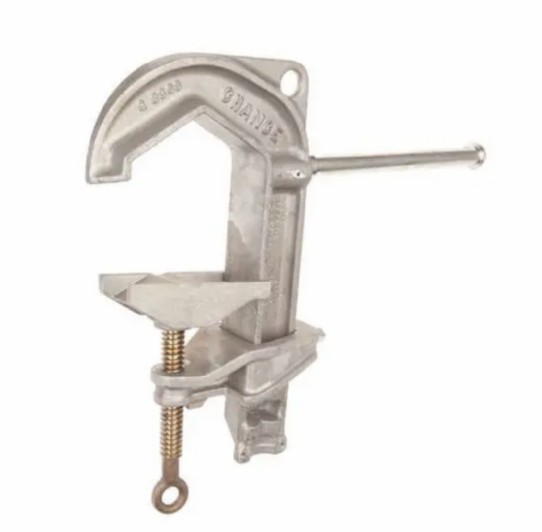

Bus Bar Ground Clamp with Rated Stud, Type I-Class A-Grade 5H, 4.5" Jaw Opening
  • Bus-Bar Ground Clamp
  • Continuous Current 400A
  • Fault Current 47kA for 15 cycles X/R=30
  • Main Line Range Max. 4" x 4" square, 4.5" O.D. Bus
  • Main Line Range Min. 4/0 Str CU (0.500")
  • Rated 8.5" x 0.75" Stud
  • ASTM Type I, Class A, Grade 5H
  • Jaws Smooth
  • Rated Stud



Chance

Images are representative of product. Product may not be exactly as shown.
