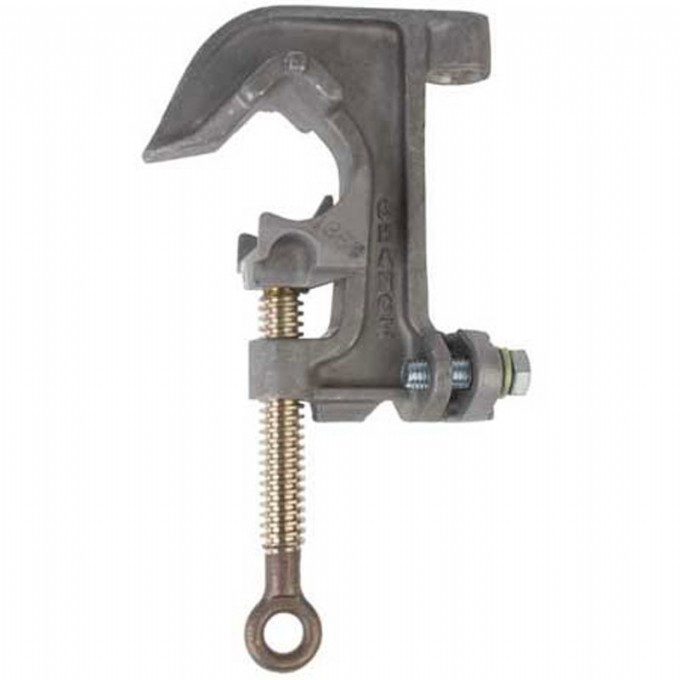

Ground Clamp 2" Bus - #6

Part # : T6000658
  •  Jaw Opening Size (Maximum) 2" (51 mm)
  •  Jaw Opening Size (Minimum) 0.162" (4 mm)
  •  Fault Current Rating 5H
  •  Material Aluminum
  •  Terminal Type 5/8"-11 Thread
  •  Handle Type Eyescrew
  •  Jaw Type Smooth Jaws
  •  Continuous Current 400 Amps
  •  Fault Current - 15 cycles 43,000 Amps
  •  Fault Current - 30 cycles 30,000 Amps
  •  Recommended Torque 250 in-lbs (339 N-M)
  •  Jumper Range - Maximum 4/0 Cable w/ Threaded Terminal
  •  Jumper Range - Minimum #2 Cable w/ Threaded Terminal
  •  Weight / Ea. 2.45 lbs



Chance

Images are representative of product. Product may not be exactly as shown.
