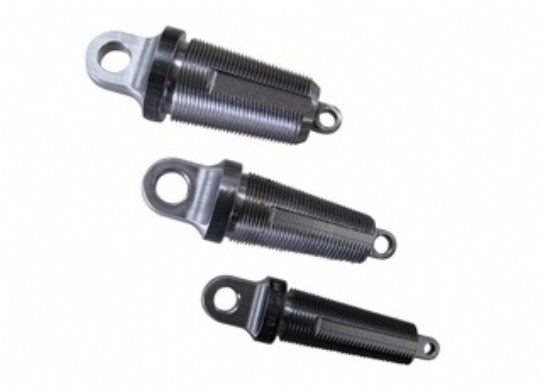

Tapered buttress threads thread into the innerduct for maximum pulling strength. These eyes connect directly to a Condux swivel. When properly sized and installed, these eyes will not pull out of the innerduct until the pulling tensions have greatly exceeded the maximum pulling tensions recommended by the innerduct manufacturers.
NOTE: To determine correct pulling eye size, obtain the actual innerduct inside diameter (I.D.). The I.D. measurement must be greater than dimension A and smaller than dimension B.
|
|
|
|
Innerduct I.D. |
|
Max OD |
|
Hole Dia. |
|
TangThickness |
|
Tang HoleDiameter |
|
Tang Hole Location |
|
|
Part |
Nominal Size |
|
Range |
|
C |
|
D |
|
E |
|
F |
|
G |
|
|
Number |
(in) |
(mm) |
A - B (in) |
A - B (mm) |
(in) |
(mm) |
(in) |
(mm) |
(in) |
(mm) |
(in) |
(mm) |
(in) |
(mm) |
|
08914110 |
3/4 |
19 |
.71 - .87 |
18 - 22 |
1.25 |
32 |
0.25 |
6 |
0.38 |
10 |
0.50 |
13 |
0.50 |
13 |
|
08914120 |
1 |
25 |
.93 - 1.06 |
24 - 27 |
1.38 |
35 |
0.25 |
6 |
0.38 |
10 |
0.50 |
13 |
0.50 |
13 |
|
08914130 |
1 1/4 |
32 |
1.06 - 1.43 |
27 - 37 |
1.75 |
44 |
0.38 |
10 |
0.50 |
13 |
0.66 |
17 |
0.63 |
16 |
|
0914140 |
1 1/2 |
38 |
1.37 - 1.68 |
35 - 43 |
2.00 |
51 |
0.38 |
10 |
0.50 |
13 |
0.66 |
17 |
0.63 |
16 |
|
08914150 |
1 3/4 |
44 |
1.68 - 1.81 |
43 - 46 |
2.25 |
57 |
0.38 |
10 |
0.50 |
13 |
0.66 |
17 |
0.75 |
19 |
|
08914160 |
2 |
51 |
1.93 - 2.12 |
49 - 54 |
2.50 |
62 |
0.38 |
10 |
0.50 |
13 |
0.81 |
21 |
0.75 |
19 |
