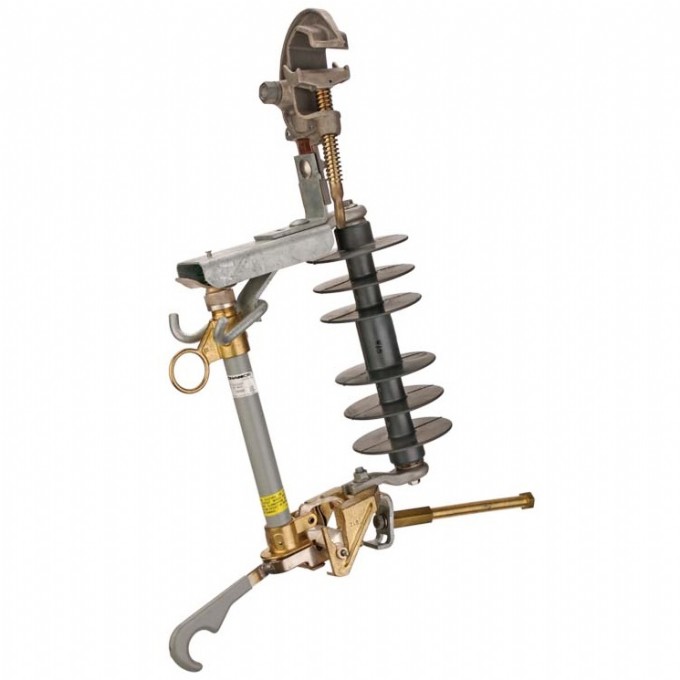

Cutout, 27Kv Temporary Pvt Lvr, replaces C6001945

Part # : PSC6010346

To provide fuse protection during live-line maintenance, the temporary cutout tool simply clamps onto primary conductor with a Grip-All clampstick. Brass stud at lower end accepts clamp on temporary tap jumper. Insulated bushing and hot parts are from Chance Type C-Polymer cutouts: Upper contact with integral sleet shield and hooks for operation by loadbreak tool and lower trunnion of cast bronze. Fusetube must be fitted with fuselink rated no larger than 100 amps.

Rated at 27kV, comes with a pivot-lever closing device.

MORE BY:

Images are representative of product. Product may not be exactly as shown.
