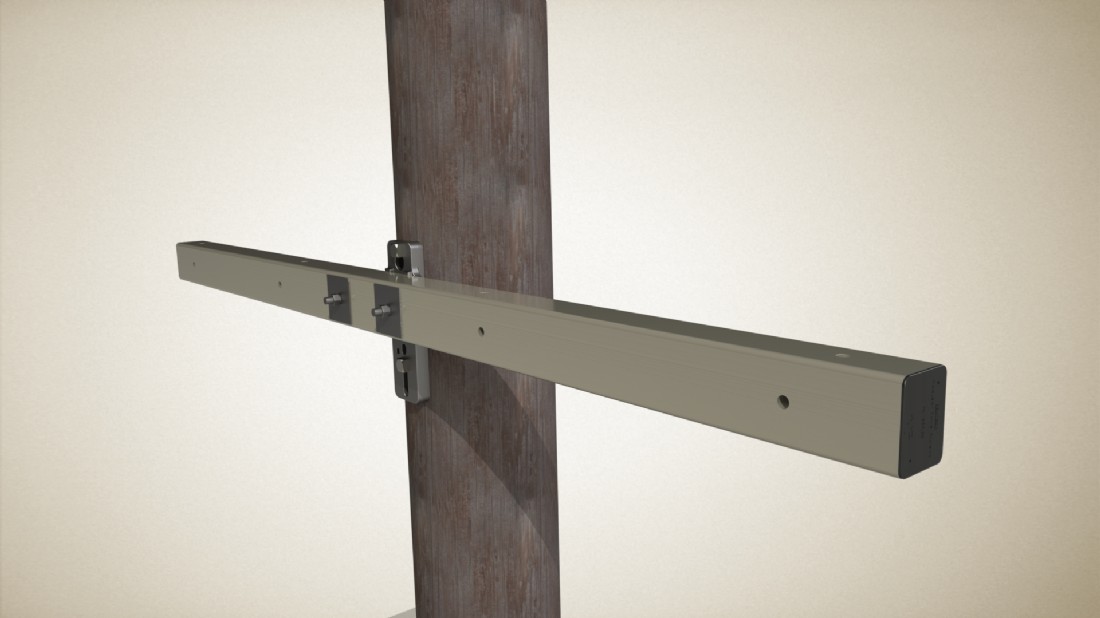

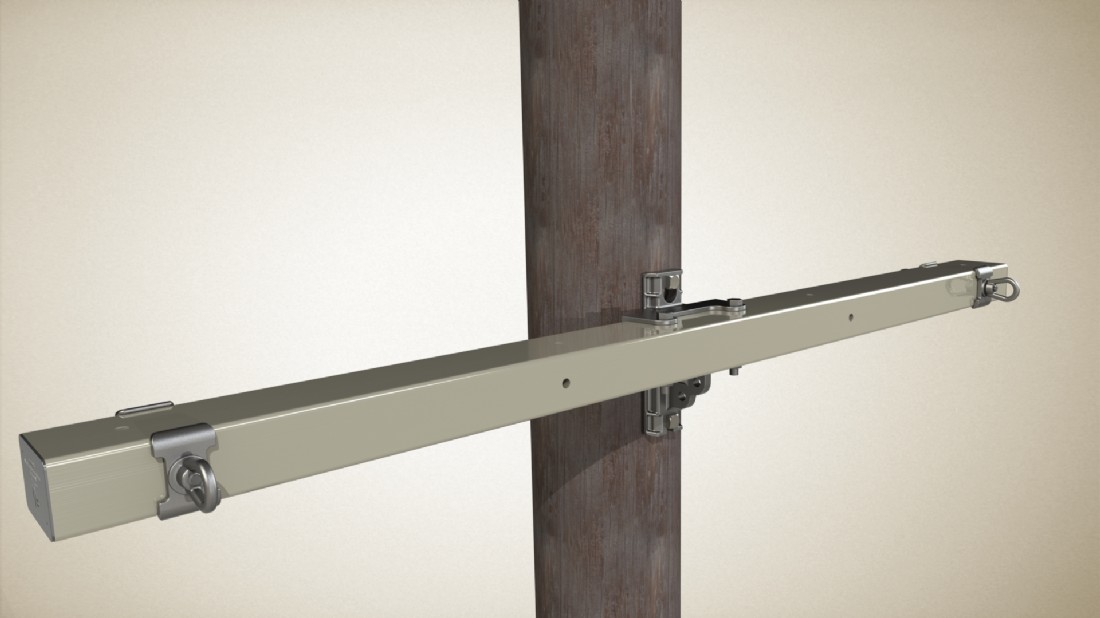

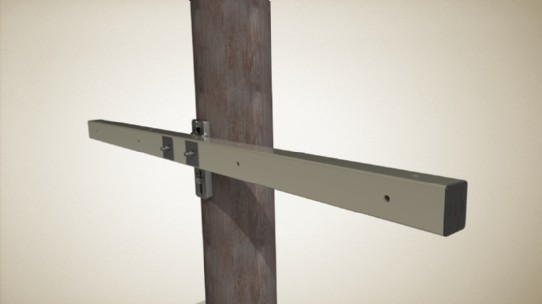

    Cross Arm, PY Series 5'6" Dead End

    Part # : PY5.5-SD170-2E-6SM
    • Quicker installation with no assembly required - units shipped ready to be installed
    • Lighter than comparable wood assemblies
    • Environmentally friendly - No chemicals or preservatives
    • Recessed cavity in base allows for double nutting - back to back mounting
    • Field drillable for maximum versatility
    • Dual guy attachment provisions
    Deadend Centermount Specifications:
    • Bandable
    • Keyhole slot
    • 12" Pole Mounting Spacing
    • 3/4" pole mounting hardware
    • "Double nutting" feature
    • Ductile Iron,  Hot Dip Galvanized ASTM A-153
    • 13/16" guy holes
    • Dual guy attachment - Rated 40k lbs
    • Single guy attachment - Rated 30k lbs each hole
    • (*All guy hole load ratings tested at 30° guy angle)

    Hardware: Ductile Iron, Hot Dip Galvanized

    Tube: UV stabilized fiberglass tube with ultraviolet (UV)  protective veil

    MacLean Power Systems

    Images are representative of product. Product may not be exactly as shown.
