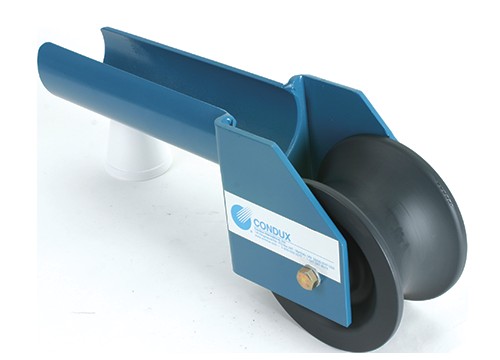

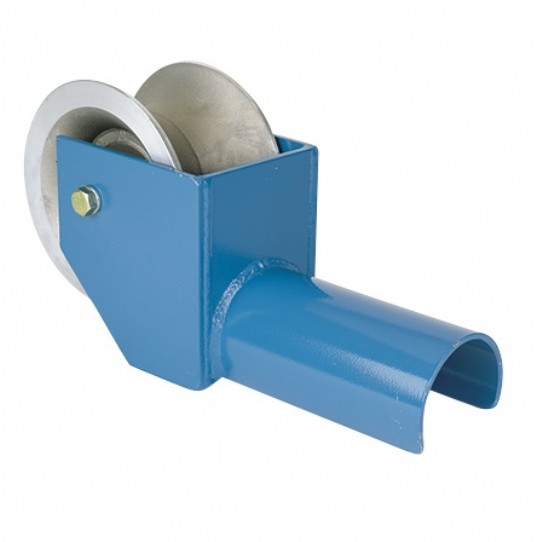

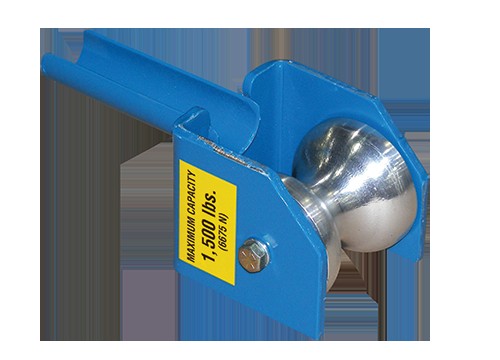

Cable Feeding Sheaves

Nylatron

A

B

I.D.

O.D.

Load

Part

Part

Size

Slot Width

Length

Tube Width

Tube Width

Capacity

Number

Number

(in)

(mm)

(in)

(mm)

(in)

(mm)

(in)

(mm)

(in)

(mm)

(in)

(mm)

08617312

-

1 1/4

32

0.88

22

5

127

1.06

27

1.19

30

1,500

6,672

08617215

8617415

11/2

38

1.04

26

5

127

1.25

32

1.44

37

1,500

6,672

08617220

8617420

2

51

1.38

35

6

152

1.75

44

1.95

50

2,600

11,565

08617225

8617425

21/2

63

1.44

37

8

203

2.16

55

2.40

61

2,600

11,565

08617230

8617430

3

76

2.25

57

12

305

2.62

67

2.95

75

4,800

21,350

08617270*

-

3

89

2.24

57

12

305

2.50

64

2.78

71

4,800

21,350

08617235

8617435

31/2

89

2.75

70

12

305

3.00

76

3.38

86

4,800

21,350

08617200

8617440

4

102

3.00

76

12

305

3.50

89

3.95

100

6,500

28,912

08617340*

08617441*

4

102

3.00

76

12

305

3.25

83

3.65

93

6,500

28,912

08617250

8617450

5

127

3.75

95

14

356

4.50

114

4.90

125

6,500

28,912

08617260

8617460

6

114

4.50

114

14

356

5.37

136

5.90

150

6,500

28,912

08617360*

08617461*

6

114

4.50

114

14

356

5.00

127

5.56

141

6,500

28,912

08617280

8617480

8

203

6.00

152

14

356

7.18

182

7.94

202

6,500

28,912

* Fits sch 80 Pipe
