AXIS 11 mm with sewn termination

Part # : R074BA02

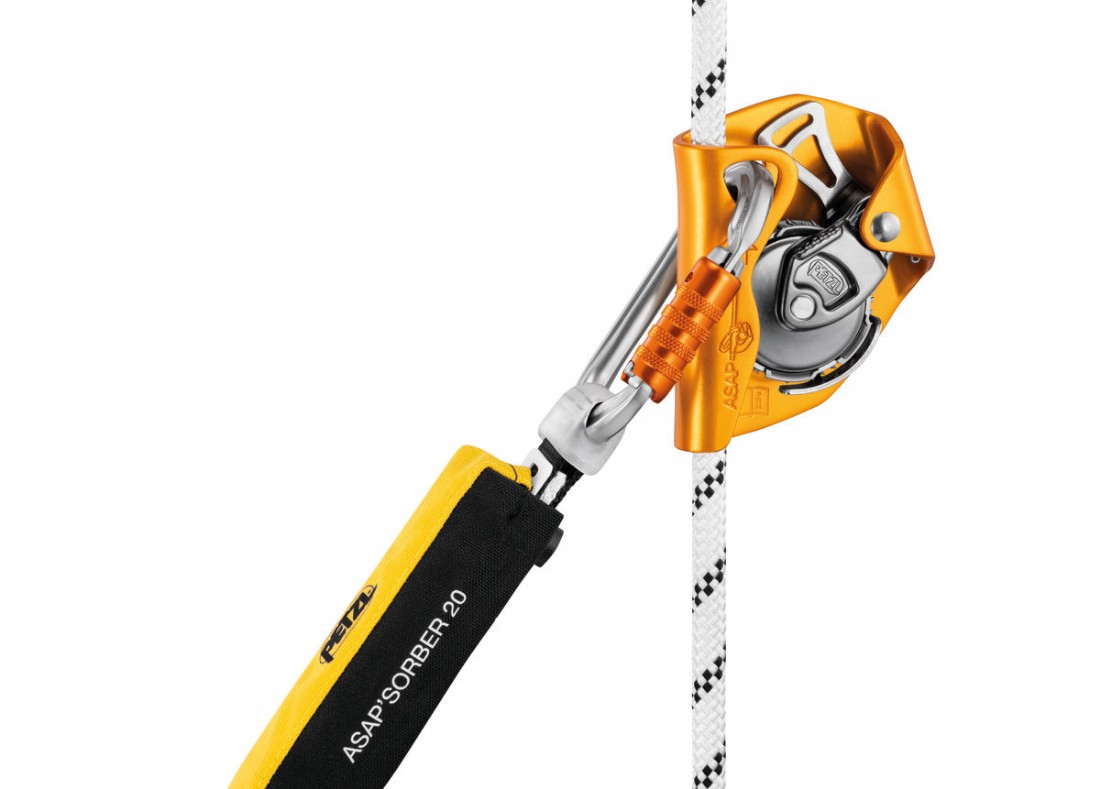

• Rope with a sewn termination, thus meeting the requirements of the EN 353-2 standard when used with an ASAP LOCK mobile fall arrester and an ASAP’SORBER or ASAP’SORBER AXESS energy absorber.
• Standard diameter ensures a good grip for easier handling
• Consistent performance over time:
  - construction with nylon core and specially-braided polyester sheath
  - EverFlex technology ensures great flexibility over time and under any conditions (water, dust, mud...), allowing it to maintain excellent handling and optimal performance with devices

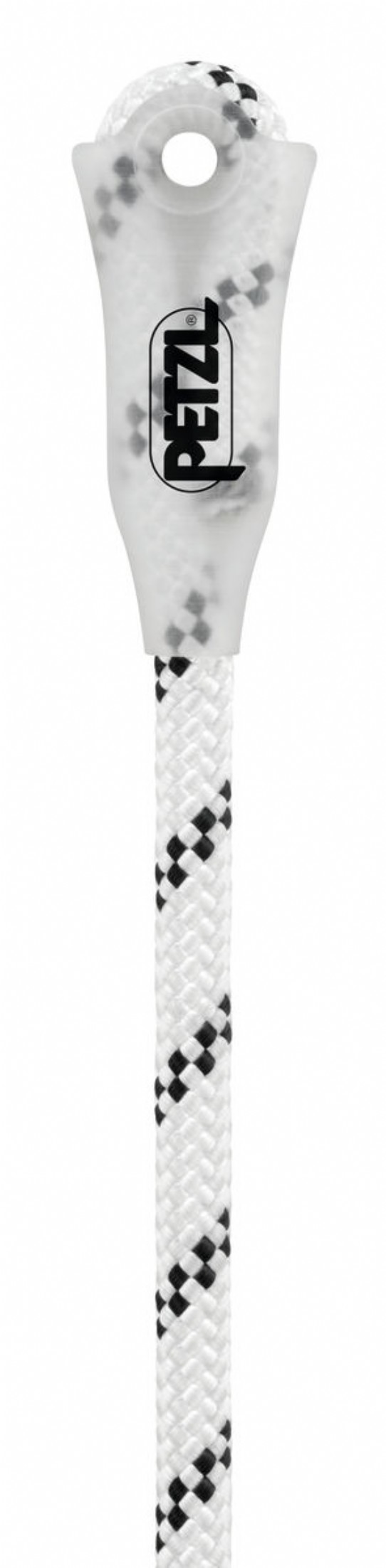

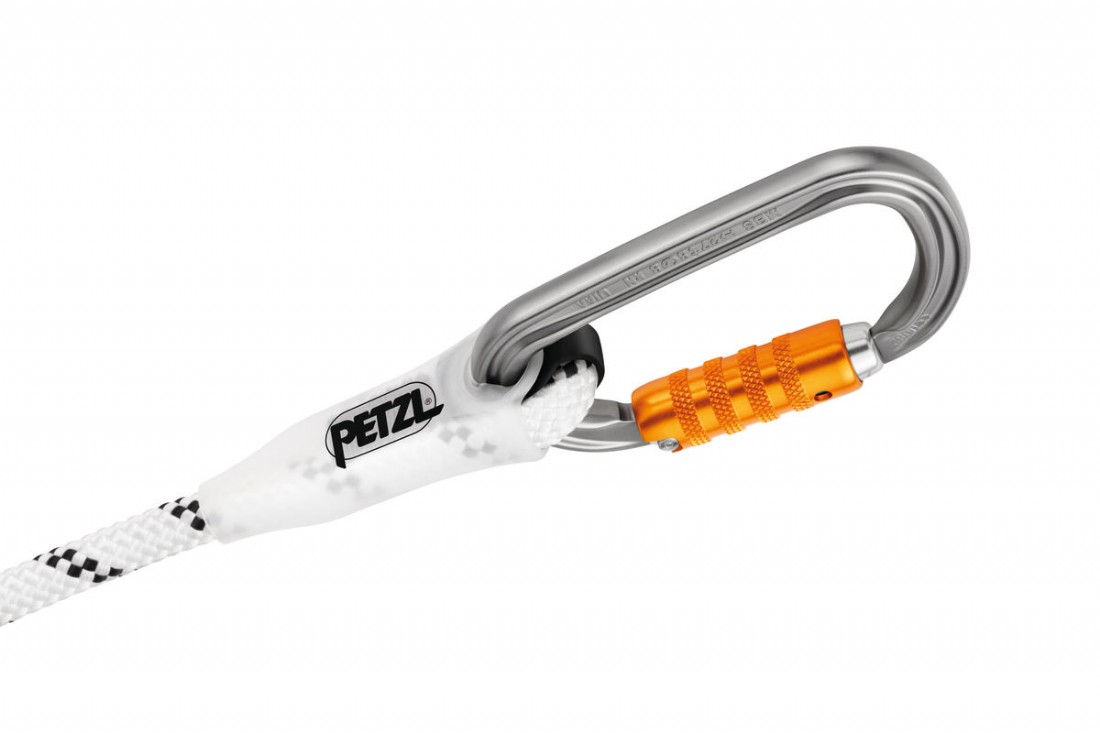

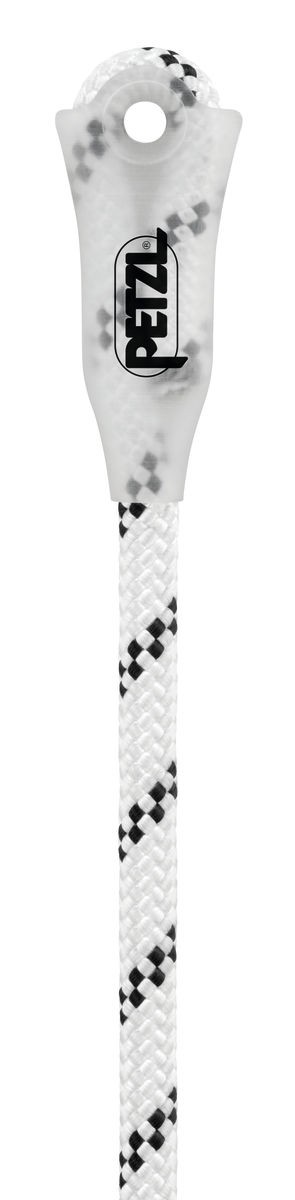

• Rope with a sewn termination: this termination has a protective sheath that helps keep the connector in position and facilitates handling
• Individual identification marking on plastic sheath, to track equipment throughout its lifespan
• Standard lengths: 10, 20, 30, 40, 50 and 60 m
• Customization on request:
  - option of ordering a rope of a specified length
  - addition of a sewn termination on the other end



Specifications

• Diameter: 11 mm
• Material(s): polyester, nylon
• Certification(s): CE EN 1891 type A, UKCA, EAC, NFPA 1983 Technical Use
• Weight per meter: 82 g
• Strength with sewn termination: 22 kN
• Impact force (factor 0,3): 5,2 kN
• Number of factor 1 falls: 12
• Construction: 32 carrier
• Percentage of sheath: 41 %
• Static elongation: 3 %



References

References	R074BA00	R074BA01	R074BA02	R074BA03	R074BA04	R074BA05
Length	10 m	20 m	30 m	40 m	50 m	60 m
Color(s)	white	white	white	white	white	white
Guarantee	3 years	3 years	3 years	3 years	3 years	3 years
Inner Pack Count	1	1	1	1	1	1
