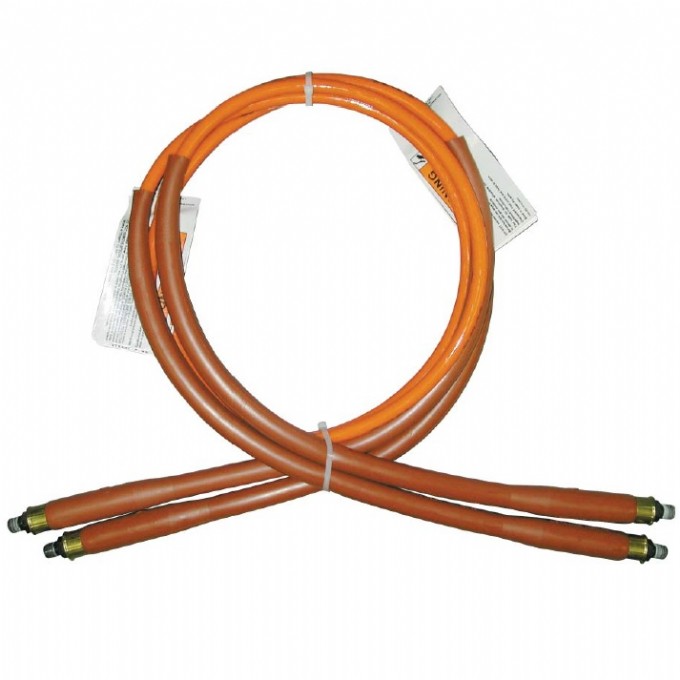

1/4" double acting hose assembly c/w fittings, 300" long

Part # : 3VE4-300DA

10,000 psi (40,000 psi min. burst) high pressure hydraulic hose designed and tested to meet the electrical conductivity requirements established in the utility market. The 3VE3 series is a 3/16” I.D. hose, standard in most double acting applications, and the 3VE4 series, which is 1/4” I.D., is more common in single acting applications.



FEATURES:

• H/D thermoplastic construction, certified nonconductive, assemblies available in any length, Lightweight, wear resistant, and excellent weatherability
• Temperature range from -40^oF to +150^oF
• H/D hose guard provides greater hand and body protection
• Safety orange jacket for greater operator awareness
• Hoses are tested at 75kV/ft assuring that the hose has a leakage factor of less than 50 microampere

Images are representative of product. Product may not be exactly as shown.
