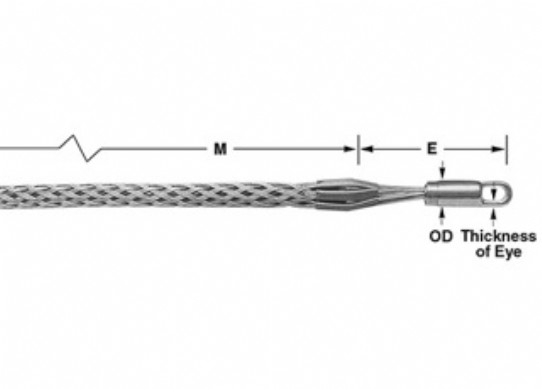

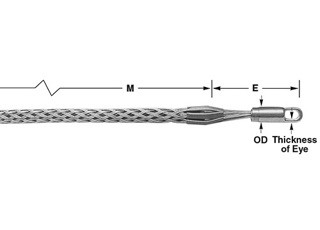

M=Mesh length at nominal diameter.
Multiple Strength Pulling Grips are designed for pulling ACSR, aluminum
or copper bare conductor, ground wires, messenger strands, wire rope and insulated cables. They are ideal for overhead transmission and distribution line stringing where moderate loading is anticipated. They are economical tools used for attaching conductors to pulling lines and double socking for conductor-to-conductor connections.
"Cable Diameter
Rotate Eye"Thickness of Eye
*Rotating Eye is not a swivel. It will not turn while under tension, but it can turn to relieve pulling torque when the tension is relaxed.
|
|
|
|
Cable Diameter |
|
Approximate Breaking |
|
|
|
|
|
OD |
|
Thickness |
|
|
Part |
|
|
Range |
|
Strength |
|
E |
|
M |
|
Rotate Eye |
|
of Eye |
|
|
Number |
Description |
Color |
(in) |
(mm) |
(lbs) |
(N) |
(in) |
(mm) |
(in) |
(mm) |
(in) |
(mm) |
(in) |
|
|
08641813 |
033-02-016 |
Dark Green |
.25 - .49 |
6 - 12 |
6,800 |
30,246 |
5 |
127 |
26 |
660 |
7/8 |
22 |
0.315 |
8 |
|
08641822 |
033-02-018 |
Brown |
.50 - .74 |
13 - 19 |
10,000 |
44,480 |
5 |
127 |
32 |
813 |
1 |
25 |
0.524 |
13 |
|
08641831 |
033-02-020 |
Light Blue |
.75 - .99 |
19 - 25 |
14,400 |
64,051 |
6 |
152 |
41 |
1,041 |
1 |
25 |
0.513 |
13 |
|
08641837 |
033-02-022 |
Gold |
1.00 - 1.24 |
25 - 31 |
24,600 |
109,421 |
8 |
203 |
52 |
1,321 |
1 3/8 |
35 |
0.532 |
14 |
|
08641843 |
033-02-024 |
Black |
1.25 - 1.49 |
32 - 38 |
30,600 |
136,109 |
8 |
203 |
56 |
1,422 |
1 5/8 |
41 |
0.667 |
17 |
|
08641849 |
033-02-026 |
Red |
1.50 - 1.74 |
38 - 44 |
30,600 |
136,109 |
9 |
229 |
60 |
1,524 |
1 7/8 |
48 |
0.71 |
18 |
|
08641852 |
033-02-028 |
Dark Blue |
1.75 - 2.24 |
44 - 57 |
48,000 |
213,504 |
10 |
254 |
70 |
1,778 |
1 7/8 |
48 |
0.653 |
17 |
|
08641855 |
033-02-066 |
Yellow |
2.00 - 2.49 |
51 - 63 |
48,000 |
213,504 |
10 |
254 |
50 |
1,270 |
1 7/8 |
48 |
0.704 |
18 |
|
08641858 |
033-02-097 |
Orange |
2.50 - 2.99 |
64 - 76 |
48,000 |
213,504 |
10 |
254 |
52 |
1,321 |
1 7/8 |
48 |
0.685 |
17 |
|
08641861 |
033-02-1030 |
Aluminum |
3.00 - 3.49 |
76 - 89 |
48,000 |
213,504 |
10 |
254 |
54 |
1,372 |
1 7/8 |
48 |
0.694 |
18 |
|
08641864 |
033-02-1031 |
Light Green |
3.50 - 3.99 |
89 - 101 |
48,000 |
213,504 |
10 |
254 |
56 |
1,422 |
1 7/8 |
48 |
0.697 |
18 |
