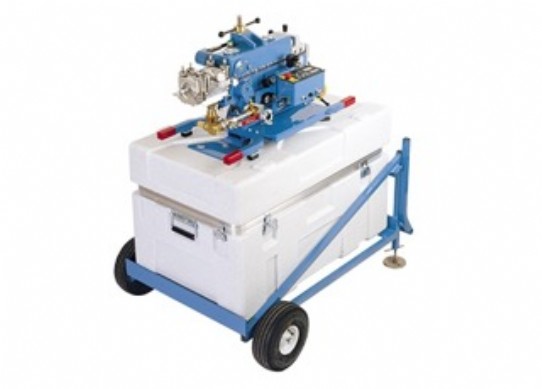

The Condux Gulfstream 400™ Fiber Optic Cable Blower is designed for the installation of fiber optic cables with diameters from 0.23" (5.8 mm) to 1.13" (28.7 mm) into microduct.
Order Duct and Cable Packs seperately, to ensure the correct size for your needs.

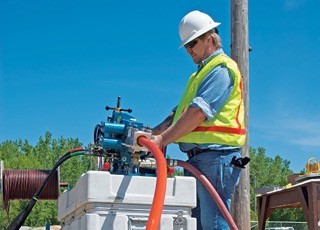

The Condux Gulfstream™ 400 Fiber Optic Cable Blower is ideal for “Last Mile” Fiber Installations.
Install up to 300 feet of fiber optic cable per minute (90 m/min). The cable travels at the same speed as the air! A carrier is always attached to the front of the cable. Compressed air propels the carrier and cable through the air-tight sealed duct. And, because air flow and tractor drive speed can be adjusted, you can install fiber at the rate which best suits any application.
The Condux Gulfstream 400 Deluxe Fiber Optic Cable Blower features longer tractor feed grip area for less stress on the cable, and a manual cylinder on the tractor feed to better control down pressure. Condux’s patented traction control system shuts down the blower when problems with cable slippage or duct blockage are detected, adding safety to every job and preventing costly cable damage.
Convenient tilting of the Condux Gulfstream 400 Deluxe Fiber Optic Cable Blower for ease of pouring in lubricant. Easily install cable into rollers, then close and you are ready to start.
The Condux Gulfstream 400 Deluxe Fiber Optic Cable Blower is extremely easy to handle and transport. The blower and all accessories including hydraulic hoses, cable and conduit packs and seal kits conveniently fit into a lightweight job box with wheels.
Can be ordered with or without the Electronic Control Box (ECB). The ECB monitors and displays the cable and tractor drive speeds and will automatically shut off the blower in these conditions: Over pressure limit, slippage, over-speed, cable stoppage.
Just select your Cable Pack and Duct Pack (see Cable Packs) (see Duct Packs).
Cable Packs: include Cable Grips (for end of cable), Pneumatic Venturies and Cable Seals.
Duct Packs: include Cable Grip (for end of inner-duct), Cable Carrier, Innerduct Clamps, Innerduct Seals, Innerduct Pulling Eye & Foam Carriers.
|
PartNumber |
Description |
|
08782000 |
Gulfstream™ 400 Fiber Optic Cable Blower |
|
08782010 |
Gulfstream™ 400 Fiber Optic Cable Blower Package 1A (includes Cable Packs # 1-7, and Duct Packs #2-5) |
|
08782008 |
Gulfstream™ 400 Fiber Optic Cable Blower Package 1B (includes Cable Packs #1-7, and Duct Packs #4,5,6) |
|
Mechanical Gulfstream™ 400 |
No Electronic Control Box (ECB) or Sensors |
|
08782004 |
Gulfstream™ 400 Fiber Optic Cable Blower |
|
08782004INTL |
Gulfstream™ 400 Fiber Optic Cable Blower with International Fittings |
|
08782046 |
Gulfstream™ 400 Fiber Optic Cable Blower Package 2A (includes Cable Packs # 1-7, and Duct Packs #2-5) |
|
08782048 |
Gulfstream™ 400 Fiber Optic Cable Blower Package 2B (includes Cable Packs #1-7, and Duct Packs #4,5,6) |
|
08782054 |
Gulfstream™ 400 Fiber Optic Cable Blower Package 2C (includes Cable Packs #1-7, and Duct Packs #9, 10, 14) |
|
08782056 |
Gulfstream™ 400 Fiber Optic Cable Blower Package 2D (includes Cable Packs #1-7, and Duct Packs #14, 15, 17) |
|
Select your Cable Pack(s) |
Minimum one required |
|
08780393 |
Cable Pack #1 0.23-0.34 in (5.8-8.8 mm) |
|
08780394 |
Cable Pack #2 0.35-0.48 in (8.9-12.2 mm) |
|
08780512 |
Cable Pack #3 0.49-0.60 in (12.4-15.2mm) |
|
08780395 |
Cable Pack #4 0.61-0.73 in (15.3-18.5 mm) |
|
08780513 |
Cable Pack #5 0.74-0.85 in (18.8-21.6mm) |
|
08780396 |
Cable Pack #6 0.86-0.97 in (22.0-24.5 mm) |
|
08780514 |
Cable Pack #7 0.98-1.13 in (24.9-28.7mm) |
|
08781117 |
Cable Pack #8 10.4 x 5.5 mm (Nylatron Venturi for flat fiber cables)Â |
|
08781118 |
Cable Pack #9 15.2 x 6.7 mm (Nylatron Venturi for flat fiber cables) |
|
Select your Duct Pack(s) |
Minimum one required |
|
08780795 |
Duct Pack #1 - 0.5" SDR 11/13.5 |
|
08780680 |
Duct Pack #2 - 0.75" SDR 11/13.5 |
|
08780386 |
Duct Pack #3 - 1" SDR 11/13.5 |
|
08780392 |
Duct Pack #4 - 1.25" SDR 11/13.5 |
|
08780397 |
Duct Pack #5 - 1.5" SDR 11/13.5 |
|
08780930 |
Duct Pack #6 - 2" SDR 11/13.5 |
|
08781120 |
Duct Pack #7 - 20 mm |
|
08781153 |
Duct Pack #8 - 22mm |
|
08780240 |
Duct Pack #9 - 25 mm |
|
08780385 |
Duct Pack #10 - 32mm |
|
08780387 |
Duct Pack #11 - 36 mm |
|
08780388 |
Duct Pack #12 - 37 mm |
|
08780389 |
Duct Pack #13 - 1.25" TRUE |
|
08780390 |
Duct Pack #14 - 40 mm |
|
08780391 |
Duct Pack #15 - 42 mm |
|
08780545 |
Duct Pack #16 - 44 mm |
|
08780575 |
Duct Pack #17 - 50 mm |
|
Common Parts Kit |
|
|
02290222 |
Small Case |
|
08780506 |
Foam Insert for Small Case |
|
02284600 |
Small Divided Case |
|
02288774 |
Parts Label for Small Divided Case |
|
08780126 |
O-Ring Seal Kit |
|
02286416 |
2 Pin Extension Cord |
|
08230800 |
Canvas Bag |
|
08017000 |
5/8" x 600lb Swivel (16mm x 2,669N) |
|
08780424 |
Capscrew Set (12-M04-07) |
|
08761248 |
Power Cord Assembly Lighter Plug |
|
02289620 |
3/4" Wrench |
|
02290168 |
Standard and Metric Hex Key Set |
|
02283800 |
3/32" Hex Ball Driver |
|
02288787 |
2.5mm Hex Ball Point Driver |
|
02291090 |
9/16" Comb-Ratchet Wrench |
|
08780223 |
Venturi Air Plug (Seal Disk) |
