Dua-Pull® Feed Tube

Part # :

Dua-Pull® Pulling Grips are the highest strength pulling grips manufactured for overhead transmission line stringing applications. They are most commonly used for attaching pulling lines to conductors, conductors to running boards and double socking for conductor-to-conductor connections. They accommodate ACSR, ACAR, all aluminum and copper conductors, ground wires messenger strands and synthetic ropes not provided by any other grip.

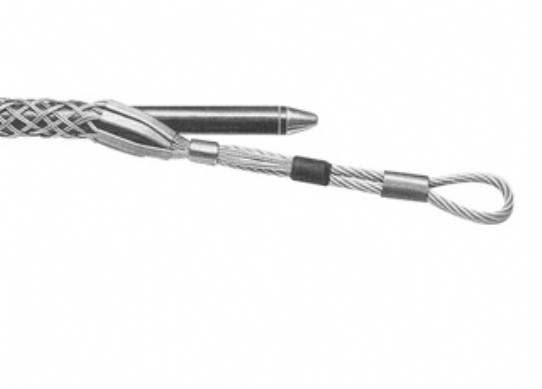

The Feed Tube is used when assembling synthetic rope into the Dua-Pull® Grip. It is required on the two largest sizes of Dua-Pull Grips. Feed Tubes are available for use on all sizes of Dua-Pull® Grips.



					Feed Tube
Part		For Use With	Rope Diameter		Length
Number	Description	Dua-Pull Grip	(in)	(mm)	(in)	(mm)
08641610	091-06-1043	8641710	.25 - .65	6 - 17	28	711
08641616	091-06-1044	8641716	.50 - .90	13 - 23	40	1,016
08641628	091-06-1045	8641728	.75 - 1.10	19 - 28	52	1,321
08641634	091-06-1046	8641734	1.00 - 1.50	25 - 38	67	1,702
08641640	091-06-1047	8641740	1.25 - 1.70	32 - 43	83	2,108
08641646	091-06-1048	8641746	1.50 - 2.10	38 - 53	96	2,438



Images are representative of product. Product may not be exactly as shown.
